Trunk / Liftgate Switch: Testing and Inspection

TRUNK LID SWITCH (4DOORS)
1. Disconnect the negative battery terminal.

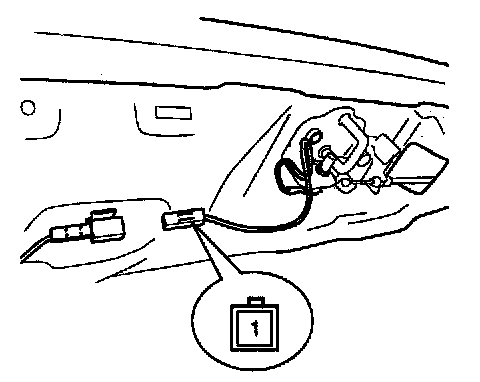

2. Remove the rear trunk lid trim, and then remove the trunk lid switch from the trunk lid striker.




3. Disconnect the 1P connector from the rear harness.

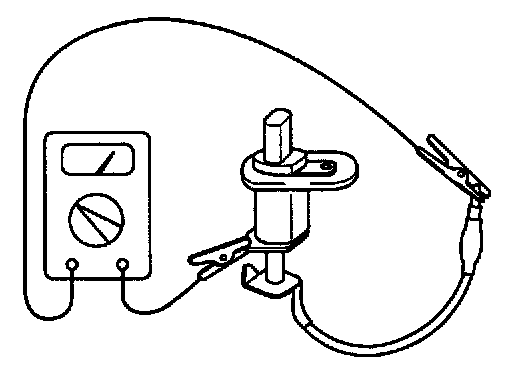

4. Check for continuity between the terminal and body while pushing the rod.

Switch rod condition Continuity
Push (OFF) Non-conductive (infinite Ohms)
Released (ON) Conductive (0 Ohms)
