Seat Temperature Switch: Testing and Inspection
SEAT WARMER SWITCHINSPECTION
1. Disconnect the negative (-) battery terminal.

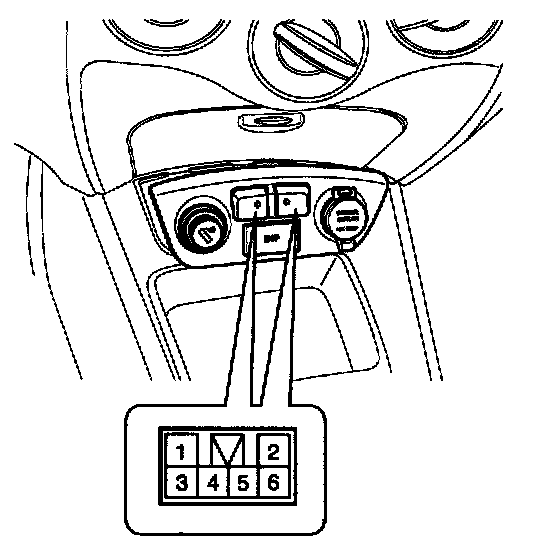

2. Remove the seat warmer switch from the floor console with scraper.

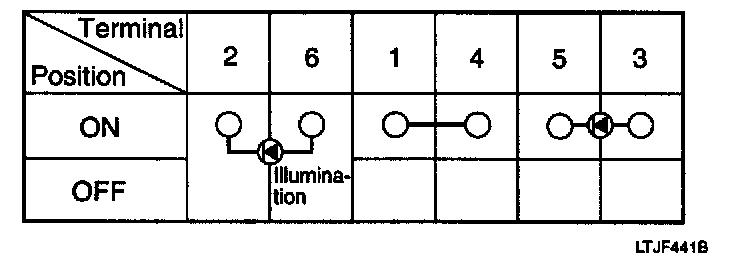

3. Check for continuity between the terminals in each switch position according to the table.
