Seat Track: Service and Repair

FRONT SEAT TRACK REPLACEMENT
1. Remove the seat back panel.
2. Remove the recliner cover, knob and height knob.
3. Remove the seat back assembly.
4. Remove the seat cushion.

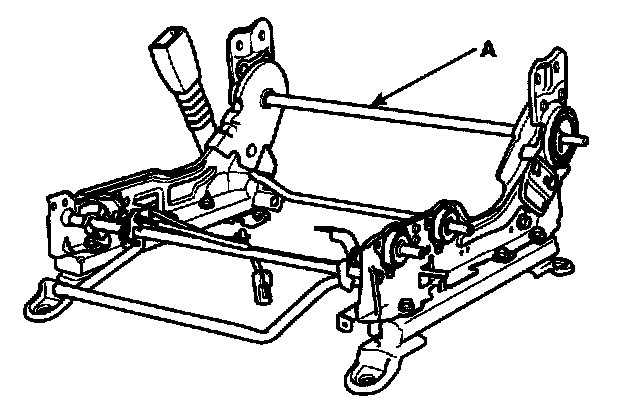

5. Remove the seat assembly (A).
6. Installation is the reverse of removal.
