Seat Cushion: Service and Repair

FRONT SEAT CUSHION COVER REPLACEMENT
1. Remove the front seat assembly.

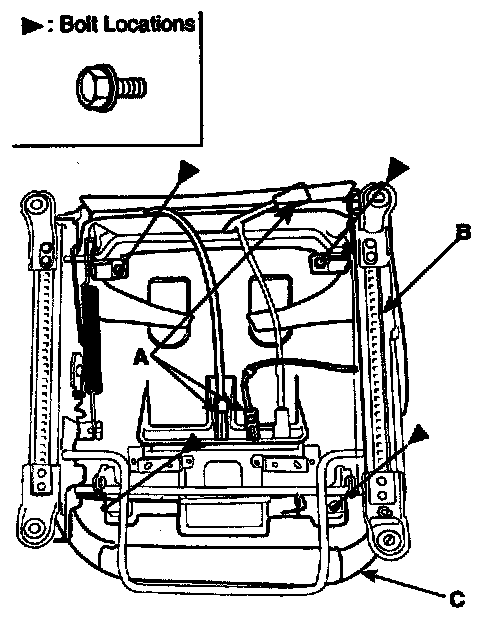

2. Disconnect the connector (A) then remove the track assembly (B) from cushion frame (C).
3. Remove the scuff band (A).

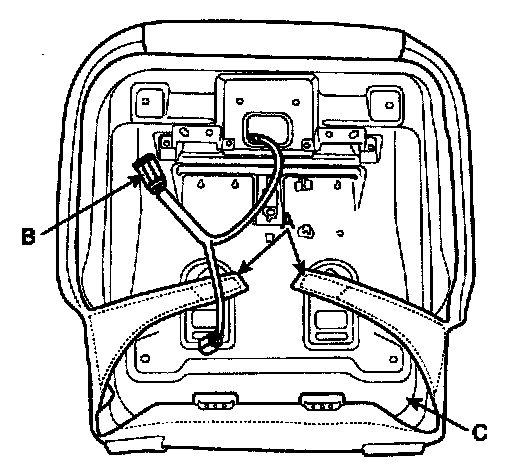

4. Remove the connector (B) then disconnect the protector from cushion frame (C).

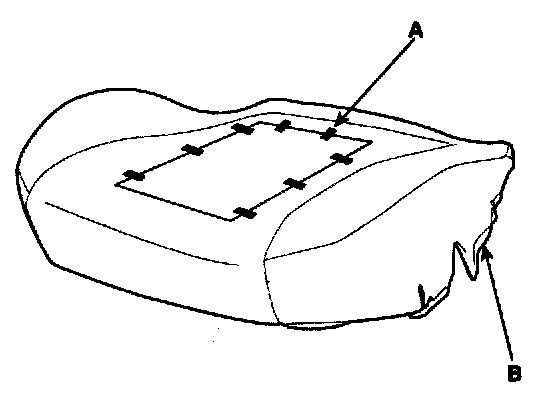

5. After removing the hogring clips (A) on the front of seat cushion and remove the seat cushion (B).
6. Installation is the reverse of removal.






NOTE

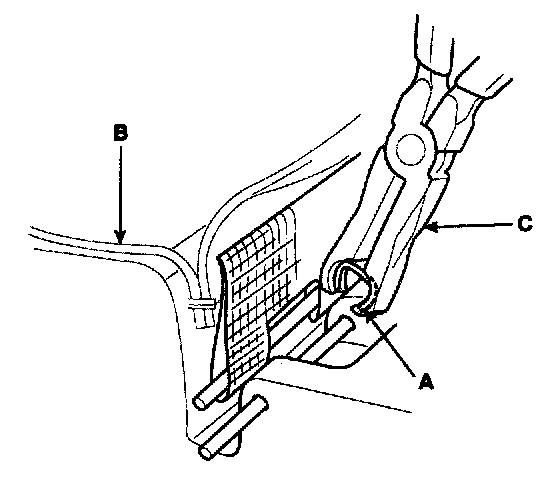

- To prevent wrinkles, make sure the material is stretched evenly over the over (B) before securing the hogring clips (A).
- Replace the hogring clips with new ones using special tool (C).
