Sunroof / Moonroof Track: Service and Repair

GUIDE ASSEMBLY REPLACEMENT
1. Remove the sunroof assembly.

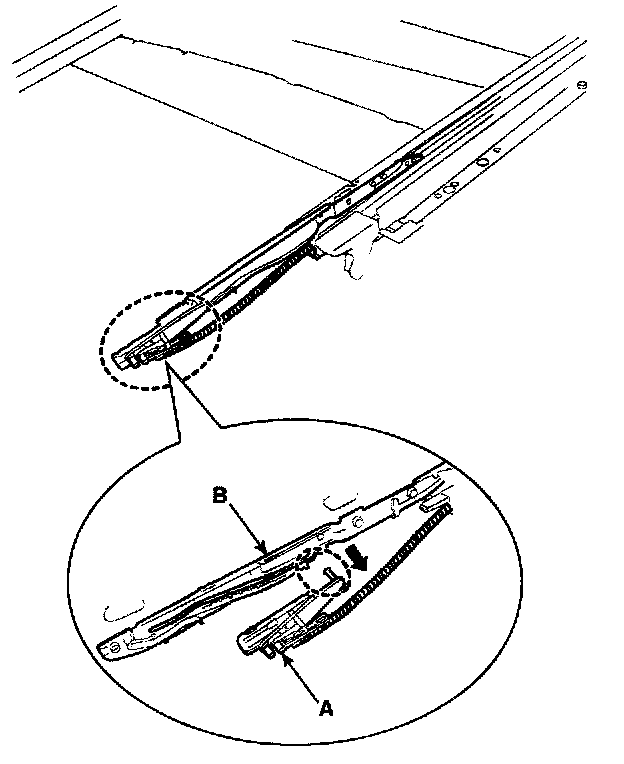

2. Remove a guide assembly (A) after lowering a guide thoroughly by pushing a slide to rear.




3. Remove the guide (A) and slide (B).
4. Installation is the reverse of removal.






NOTE

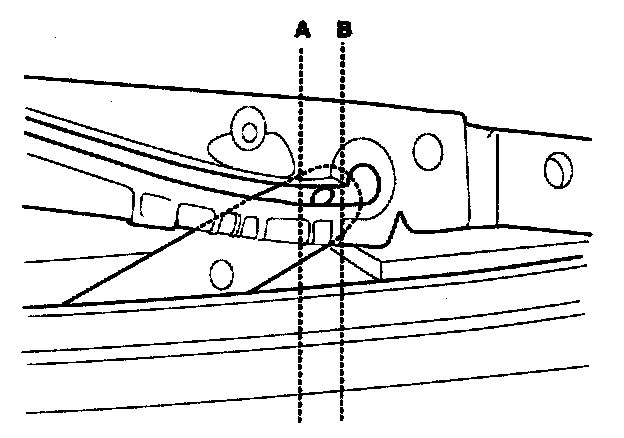

- Make sure to align the slide with the center of "A" and " B"
- Make sure to initialize the motor.
