Sunroof / Moonroof: Service and Repair

SUNROOF ASSEMBLY REPLACEMENT
1. Remove the follows parts.
- Front and door scuff trim.
- Front, center and rear pillar trim.
- headlining.
- Sunroof glass.

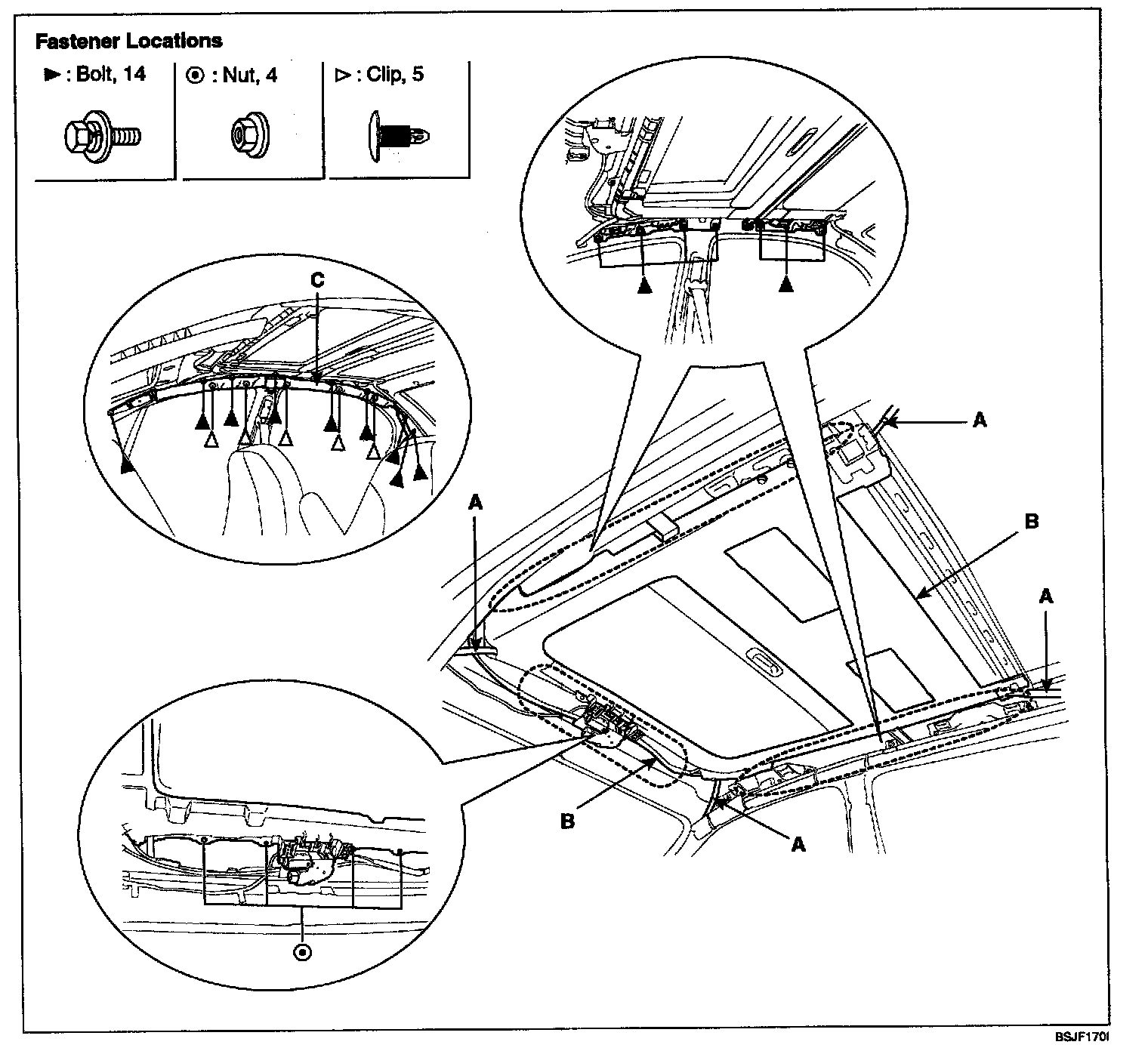

2. Disconnect the drain tubes (A).
3. After loosening the mounding bolts and nuts, remove the sunroof assembly (B).

NOTE: Take care not to scratch the interior trims and other parts.

4. Installation is the reverse of removal.
