Lower Side Moulding / Trim: Service and Repair

SIDE GARNISH AND SIDE SILL REPLACEMENT

NOTE
- When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
- Put on gloves to protect your hands.
- Take care not to scratch the body surface.

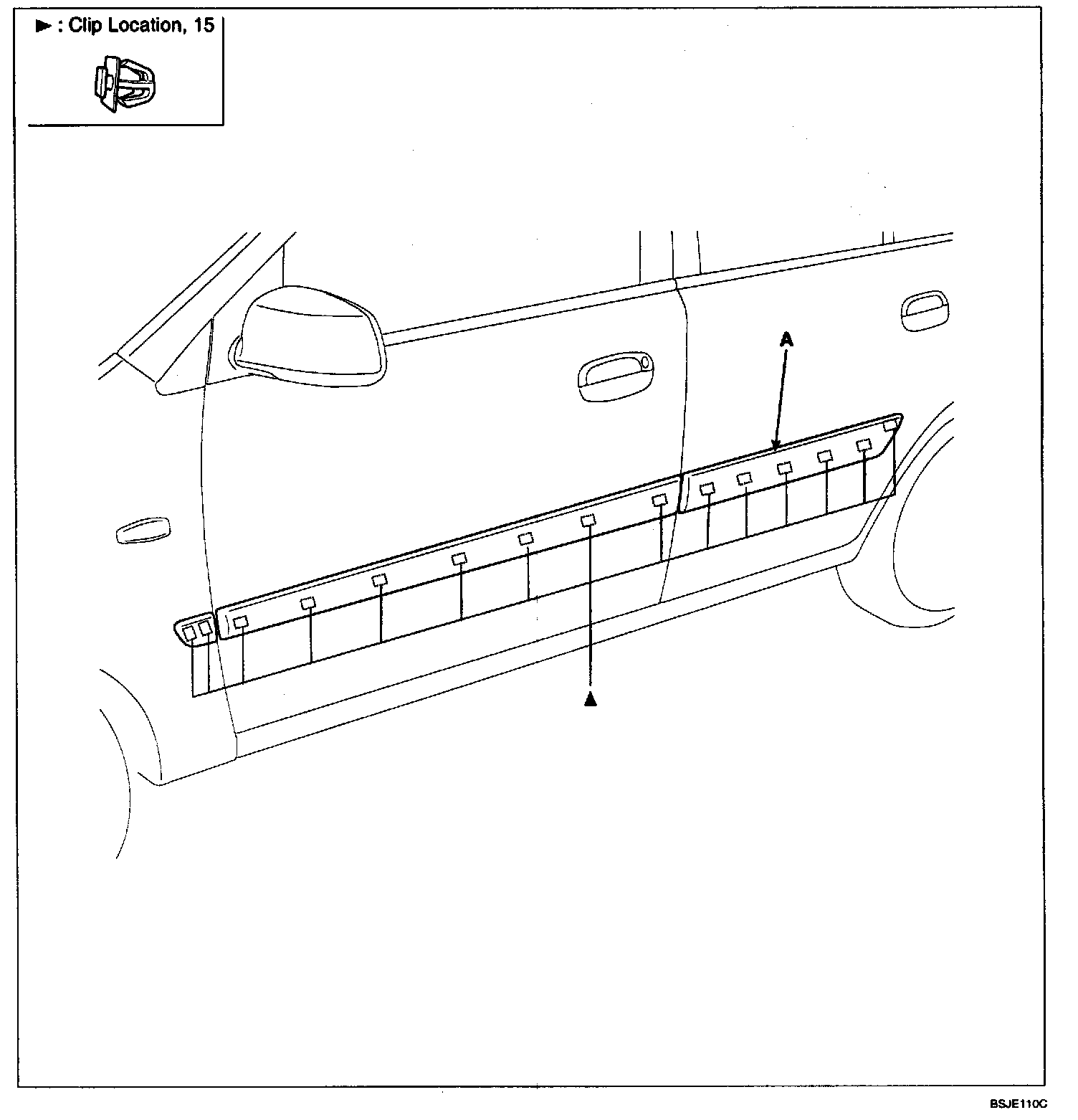

1. Remove the side gamish (A).
2. Installation is the reverse of removal.
