Cowl Moulding / Trim: Service and Repair
COWL TOP COVER REPLACEMENT
1.
Remove the wiper arm.
2.

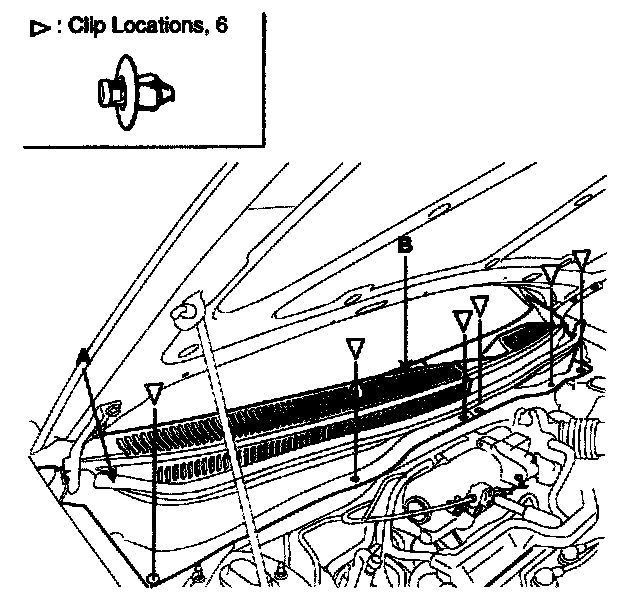

Disconnecting the
hood weatherstrip
(A), remove the cowl top cover (B).
