Speakers Replacement

SPEAKERS

REPLACEMENT

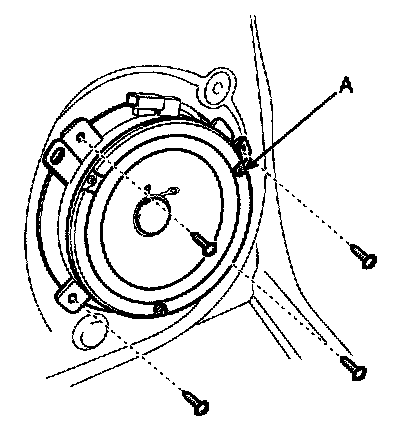

FRONT SPEAKER
1. Remove the front door trim panel.




2. Remove the front speaker (A) after removing 4 screws.
3. Installation is the reverse of removal.

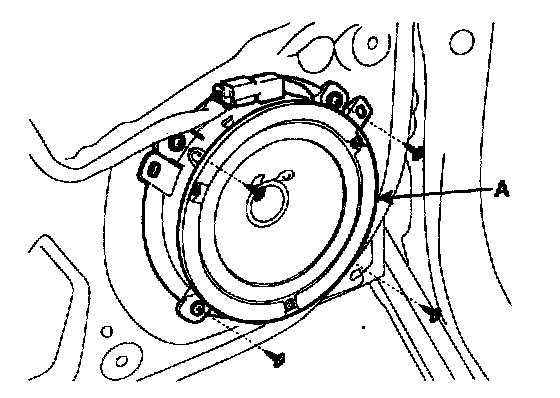

REAR SPEAKER (4 DOORS)
1. Remove the rear door trim panel.




2. Remove the rear speaker (A) after removing 4 screws.
3. Installation is the reverse of removal.

REAR SPEAKER (5 DOORS)
1. Remove the rear seat.
2. Remove the rear package tray.




3. Remove the rear speaker (A) after removing 4 bolts.
4. Installation is the reverse of removal.

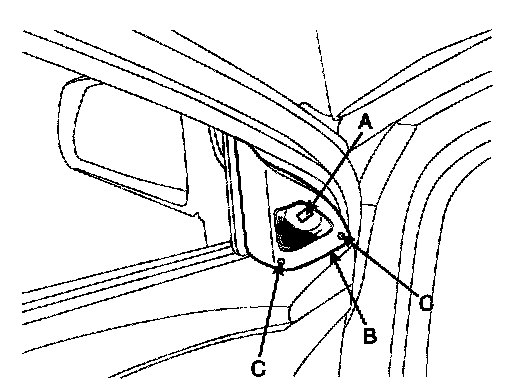

TWEETER SPEAKER
1. Remove the front door quadrant inner cover (B).




2. Remove the tweeter speaker after disconnecting the connector (A). Take care of fixing clips (C).
3. Installation is the reverse of removal.
