Door Warning Switch

DOOR WARNING SWITCH

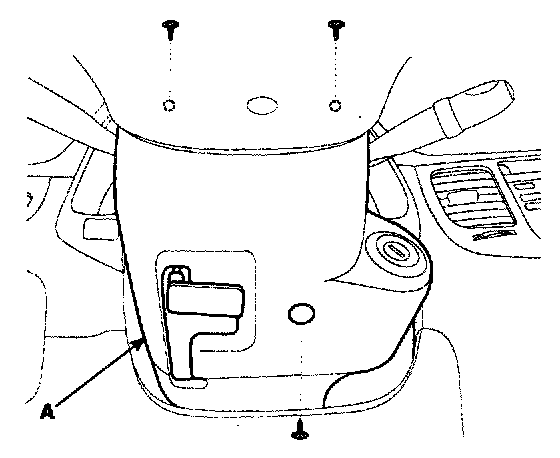

1. Remove the steering column upper & lower shrouds (A) after loosening 3 screws.

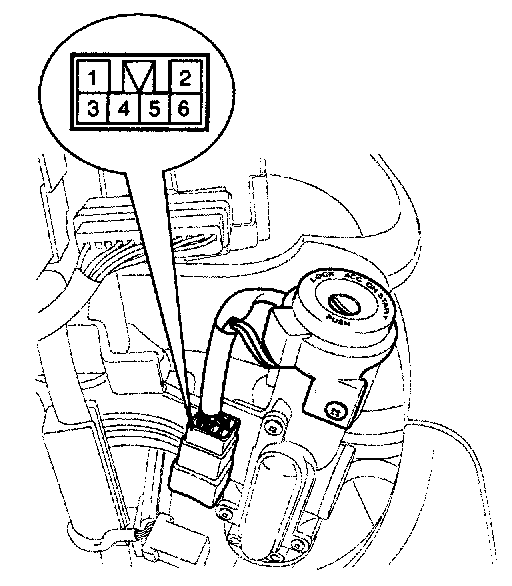

2. Disconnect the 6P connector from the door warning switch.

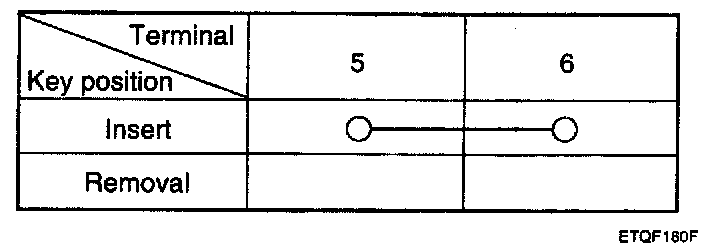

3. Check for continuity between the terminals in each position according to the table.
