Alarm Module: Service and Repair

IMMOBILIZER CONTROL UNIT

REPLACEMENT
1. Disconnect the negative (-) battery terminal.

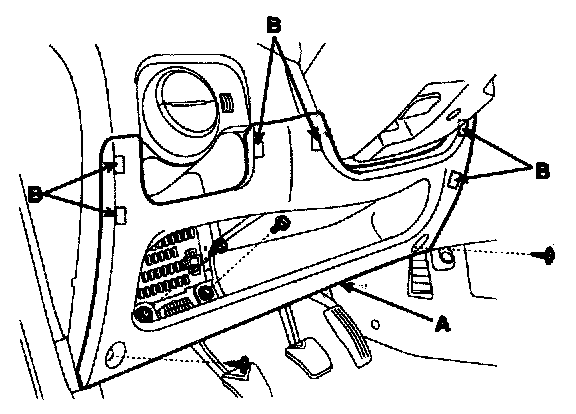

2. Remove the crash pad lower panel (A). Take care of fixing clips (B).

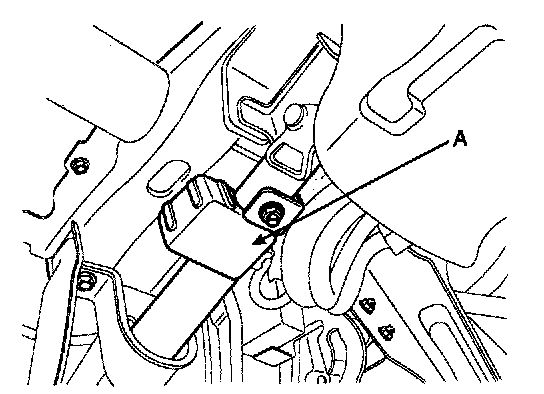

3. Disconnect the 5P connector of the SMARTRA unit and then remove the SMARTRA unit (A) after loosening the nut.
4. Installation is the reverse of removal procedure.
