Antenna, Radio: Service and Repair

ANTENNA REPLACEMENT
1. Remove the rear roof trim.

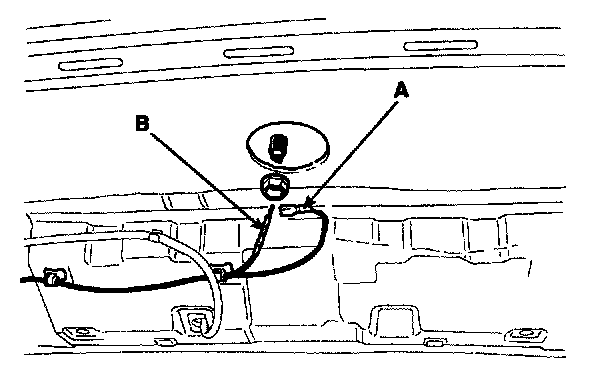

2. Disconnect the 1P connector (A) and antenna jack (B) from the roof antenna.




3. Remove the roof antenna after removing a nut.
4. Installation is the reverse of removal.
