Pilot Bearing: Service and Repair

Removal

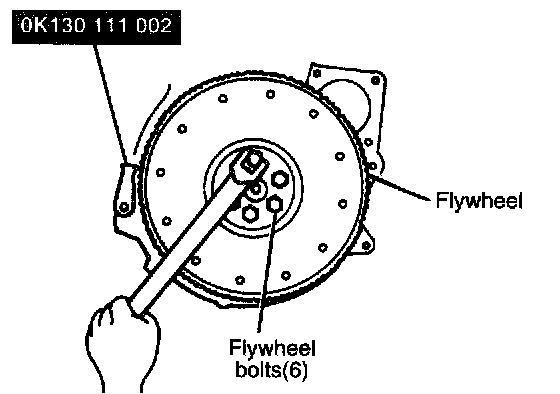

1. Remove the flywheel.
2. Use a suitable driver to remove the pilot bearing from the flywheel.

Installation

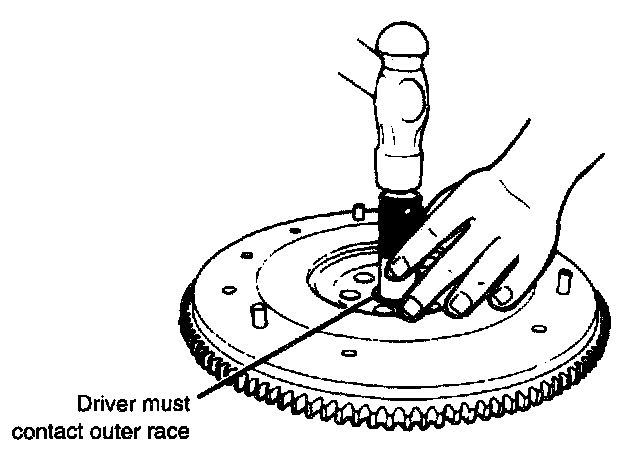

Caution: Make sure the driver contacts the bearing outer race. Any contact to the inner race will damage the bearing.

1. Install the pilot bearing using a suitable driver.
2. Install the flywheel.
