Clutch Pedal Assembly: Service and Repair

Removal
1. Loosen the cable adjuster nut at the transaxle release lever until the cable can be disengaged from the lever.
2. Remove the clip securing the cable case to the pedal support bracket.
3. Pull upward on the cable and disengage it from the hook on the pedal.
4. Remove the attaching nut, lockwasher, and flat washer from the end of the pivot bolt.
5. Slide off the clutch pedal and return spring from the pivot bolt.

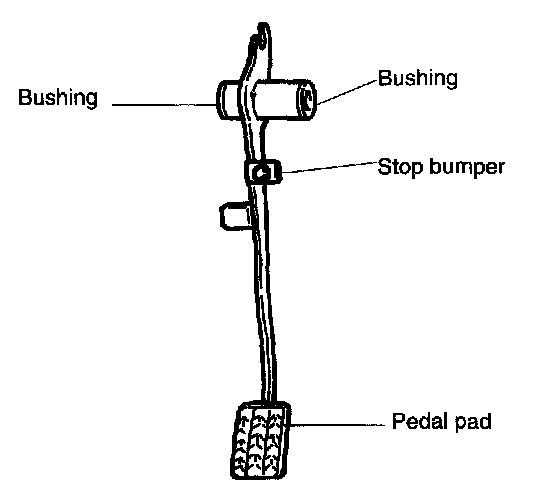

6. If necessary, remove the pedal pad, stop bumper, and bushings from the pedal.

Notice: Apply a grease (lithium base, NGLI No. 2) to the bushings and pivot points.

Installation
To install, reverse the removal procedure.
