Description

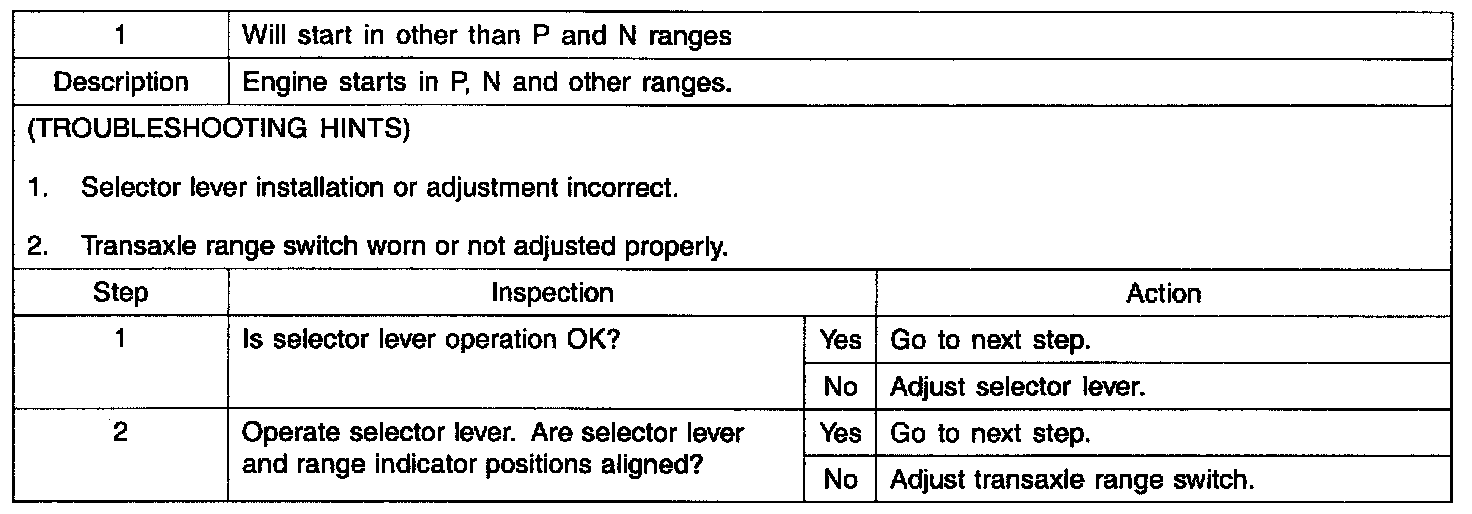

TROUBLESHOOTING CHART





Description
Further describes symptom. Confirm that chart addresses actual symptom before beginning troubleshooting.

Troubleshooting hints
This describes possible point of malfunction.

Step
This shows order of troubleshooting. Proceed with troubleshooting as indicated.

Inspection
This describes an inspection to quickly determine malfunction of parts. If a detailed procedure is necessary to perform inspection.

Action
This recommends appropriate action to take as a result (Yes/No) of inspection. How to perform action is described on reference page shown.

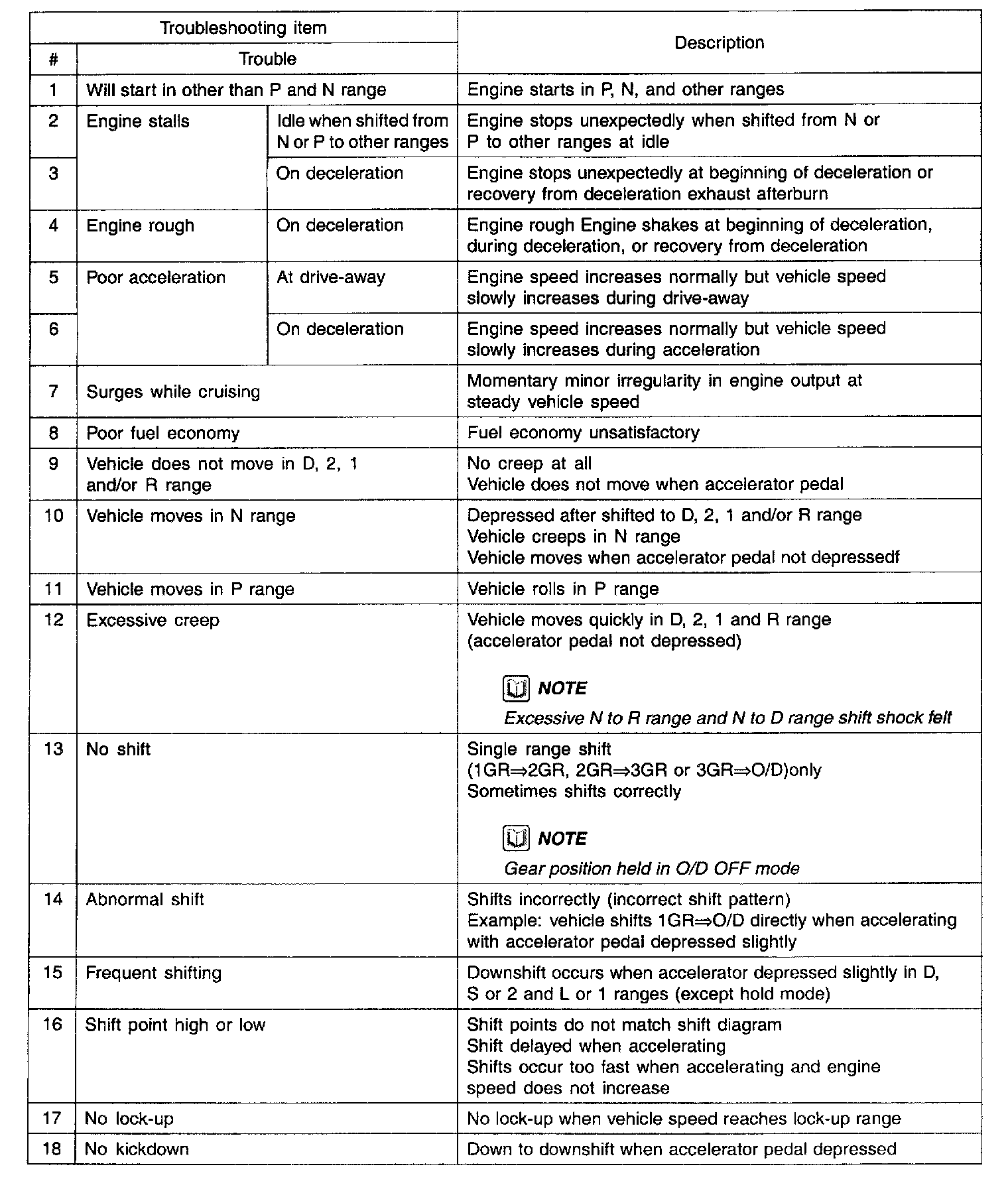

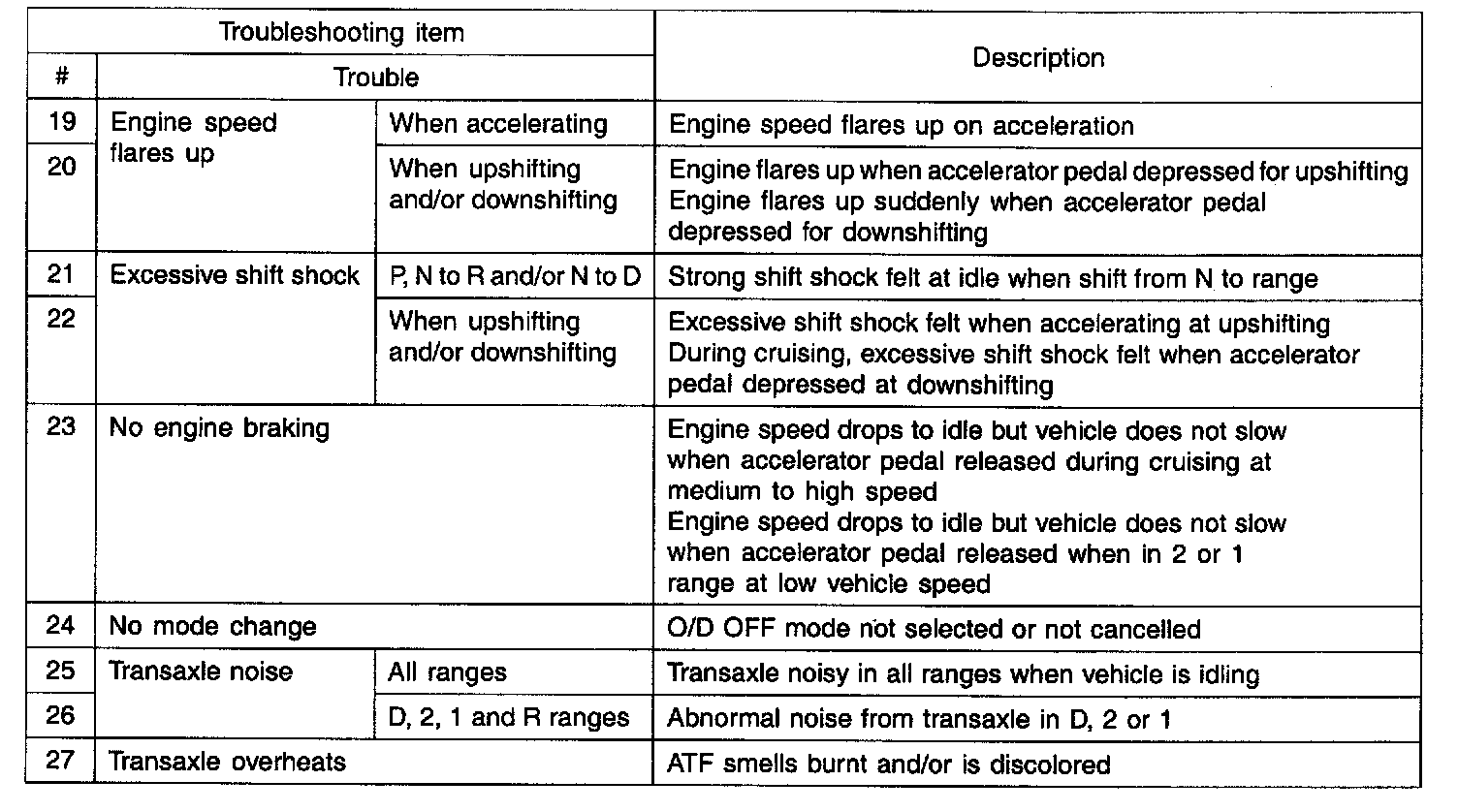

DIAGNOSTIC INDEX
