Output Gear

OUTPUT GEAR





COMPONENT

DISASSEMBLY
1. Remove two seal rings.

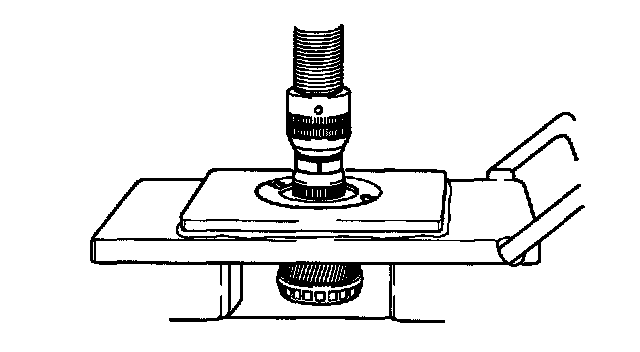

2. Remove bearings from output gear with suitable tools.

RE-ASSEMBLY

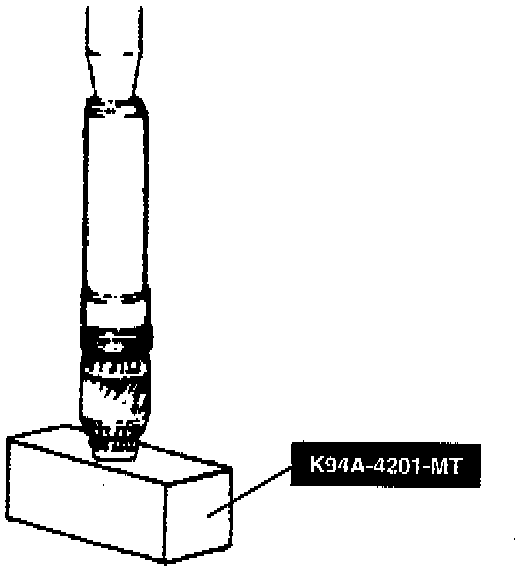

1. Press new bearings onto output gear with suitable tools.

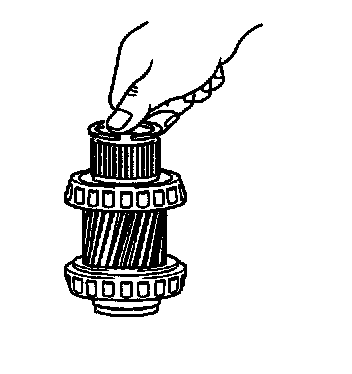

2. Apply ATF to new seal rings and install them to each side of output gear.
