Home >> Kia >> 2005 >> Rio L4-1.6L (BC) >> Repair and Diagnosis >> Steering and Suspension >> Wheels and Tires >> Tires >> Testing and Inspection >> Irregular Tire Wear

Irregular Tire Wear

Irregular tire wear

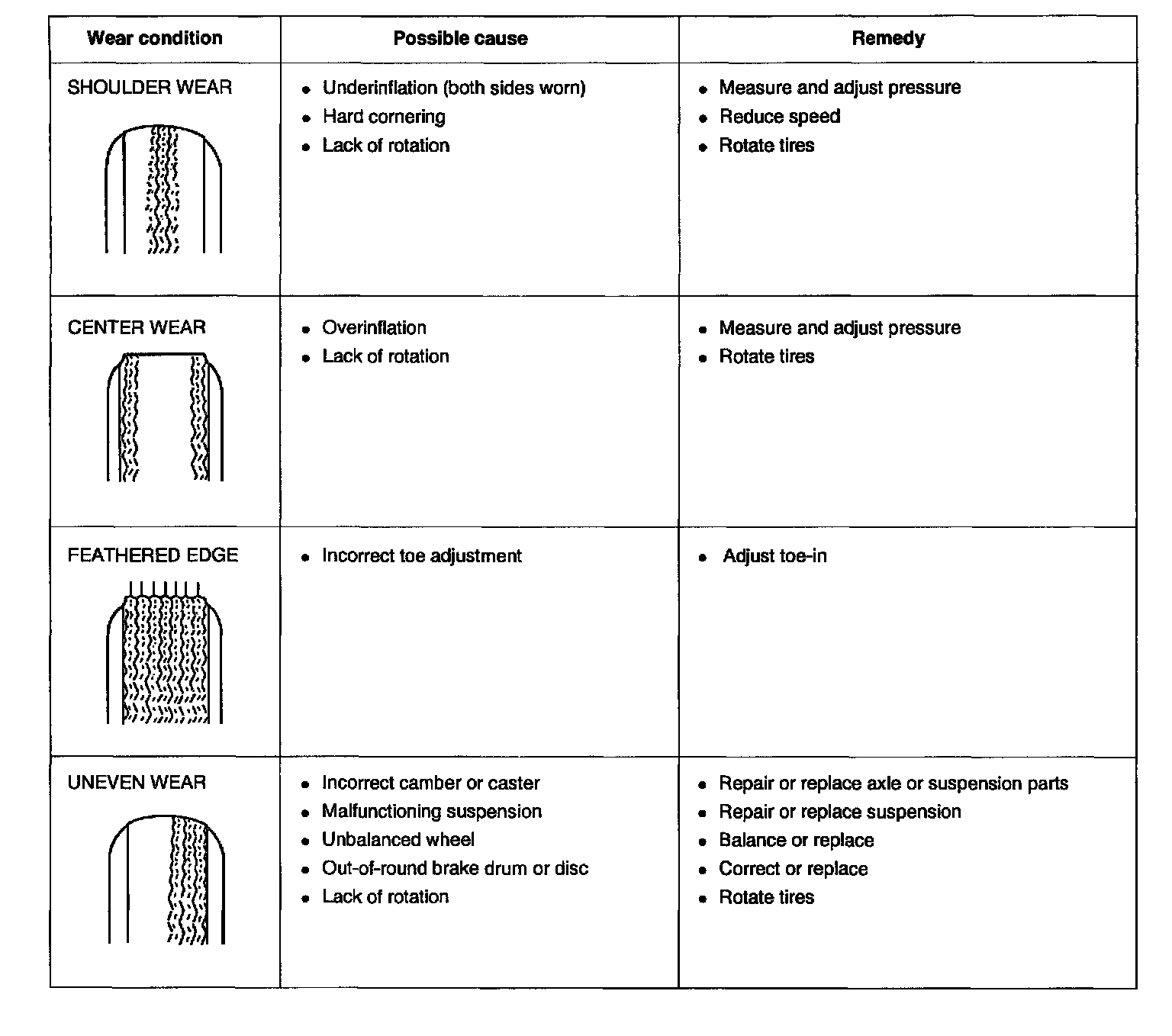

Abnormal tire wear patterns, such as shown in the illustration, may occur. Refer to the chart for the possible causes and remedies.
