Rectifier Diode / Bridge: Testing and Inspection

RECTIFIER

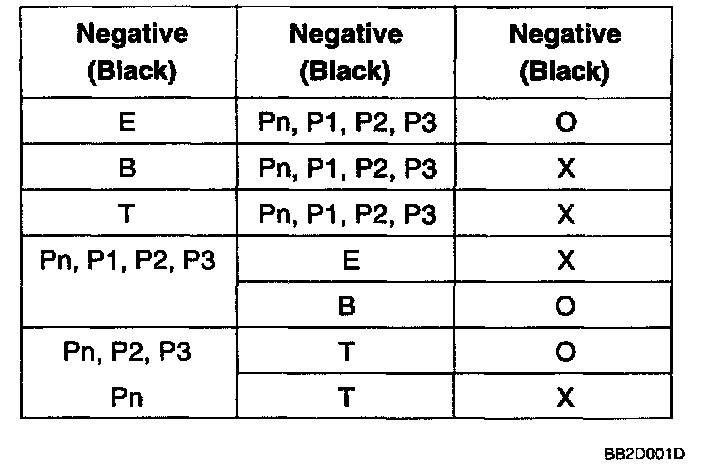

1. Check for continuity between each diode with an ohmmeter.
2. Replace if necessary.
