Battery: Service and Repair

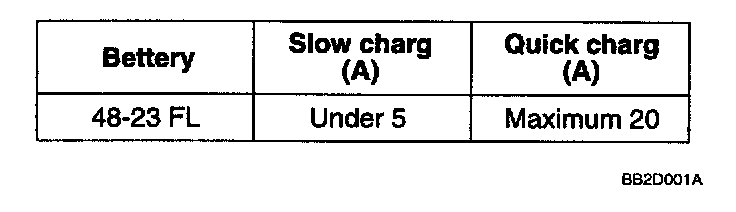

BATTERY RECHARGING

SLOW CHARGING







1. It is not necessary to remove vent caps to perform a slow charge.

QUICK CHARGING




1. Remove battery from vehicle and remove vent caps to perform a quick charge.

WARNING:
- Before performing maintenance or recharging battery, turn off all accessories and stop engine.
- Negative cable must be removed first and installed last.
- Set battery in water when quick charging to prevent overheating battery.
