Flywheel

Tightening Torque and Sequence

Flywheel Tightening Torque 71-76 ft.lbs.(96 - 103Nm)

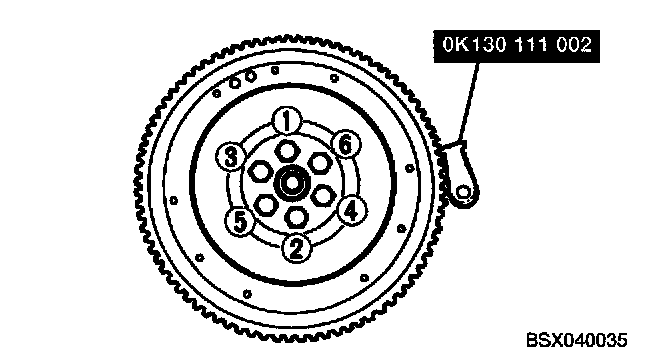

Flywheel Tightening Sequence.
