Home >> Kia >> 2005 >> Rio L4-1.6L (BC) >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Lighting and Horns >> Hazard Warning Switch >> Locations

Hazard Warning Switch: Locations

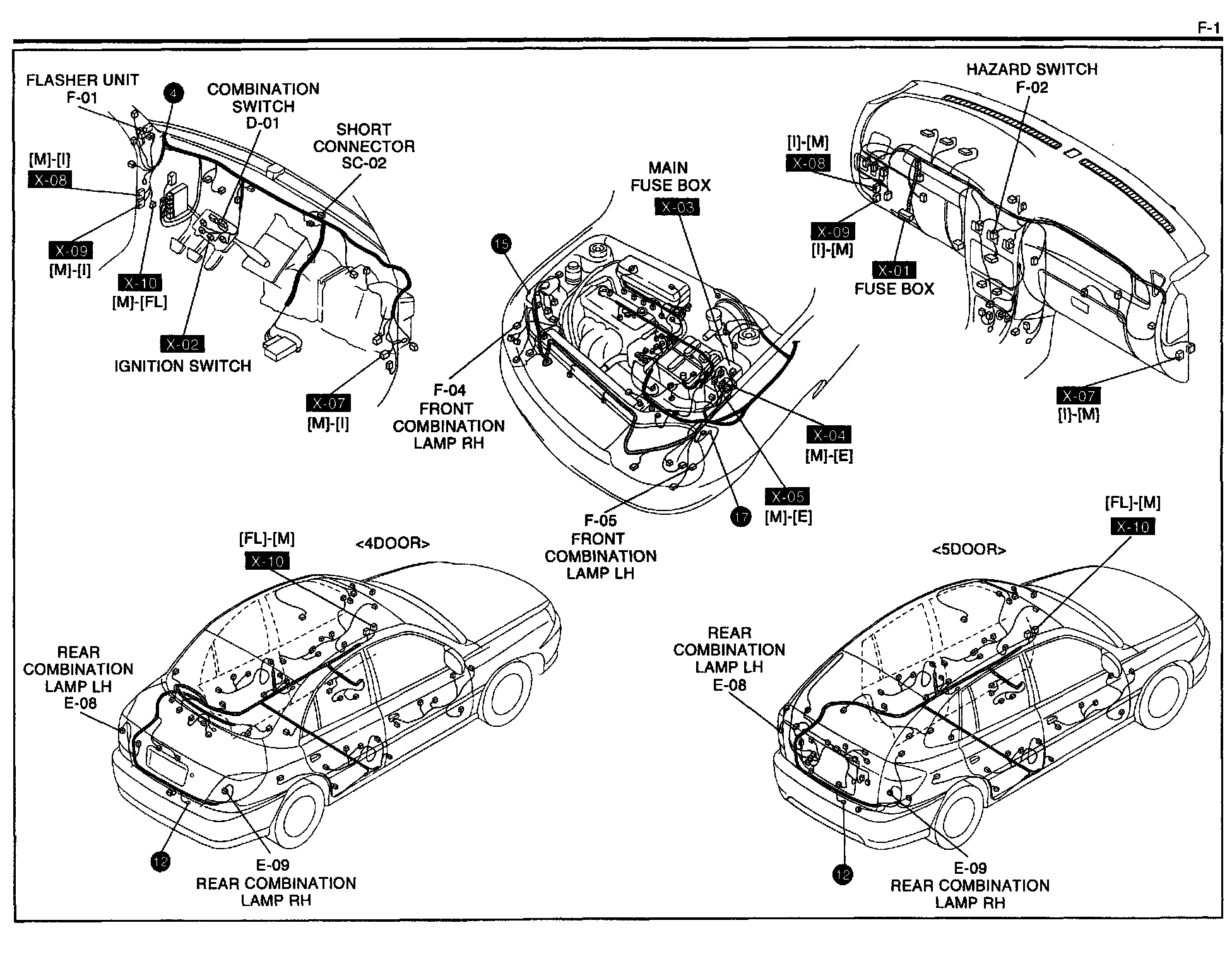

Routing View F-1:

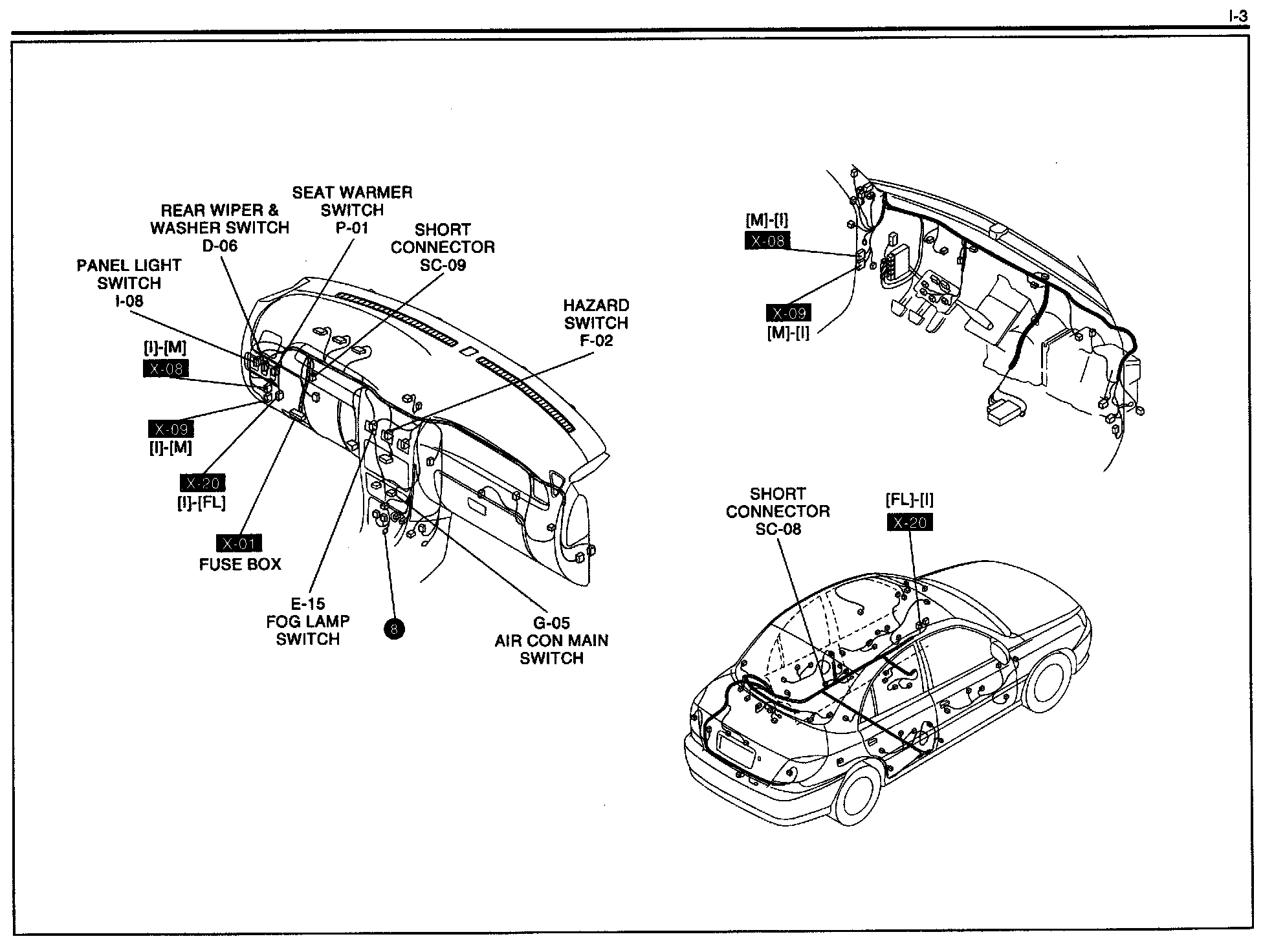

Routing View I-3:
