Home >> Kia >> 2005 >> Rio L4-1.6L (BC) >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Symptom Related Diagnostic Procedures >> Symptom Charts >> 17 - Hesitates/Stumbles on Acceleration

17 - Hesitates/Stumbles on Acceleration

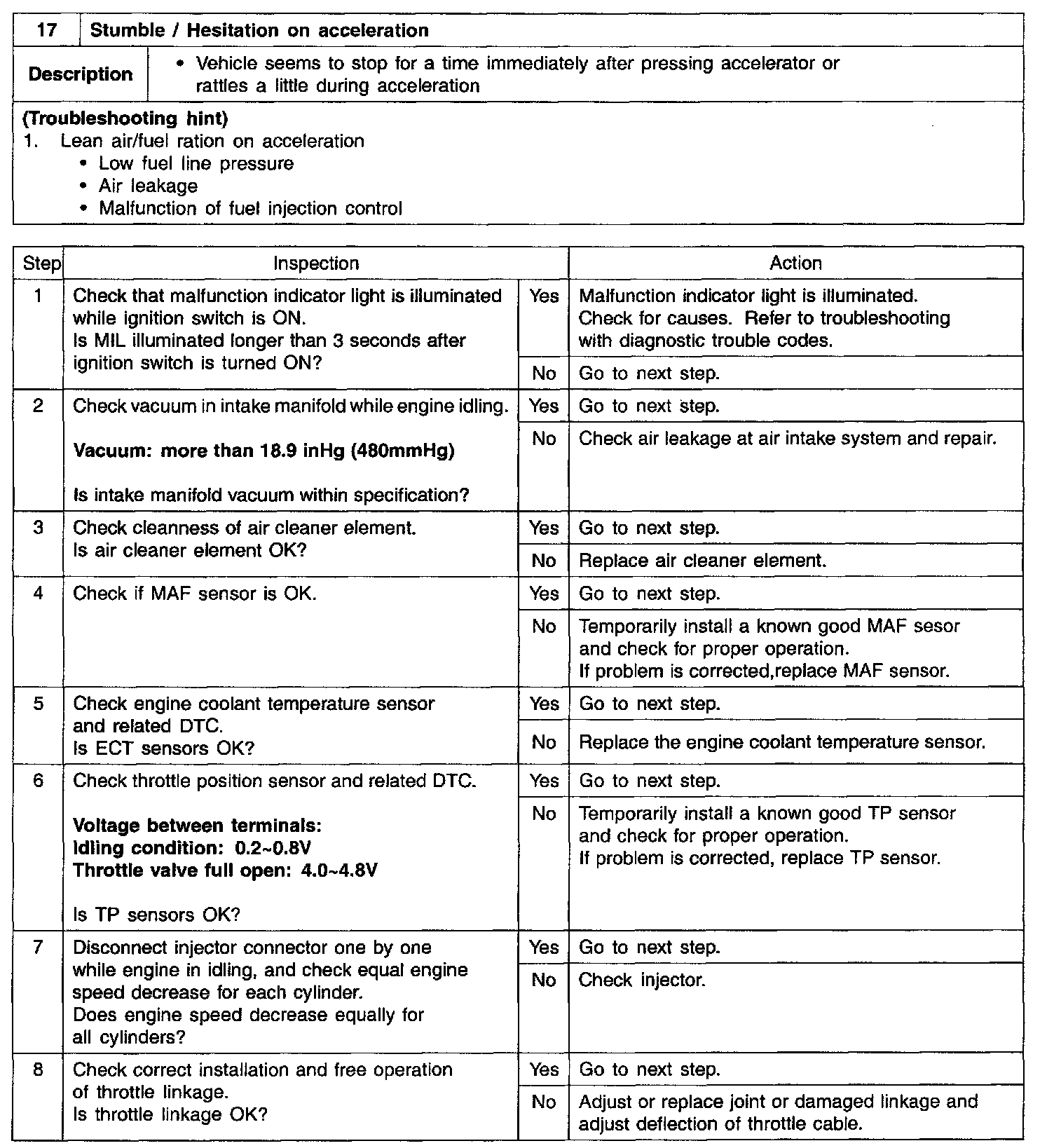

Step 1 - 8:

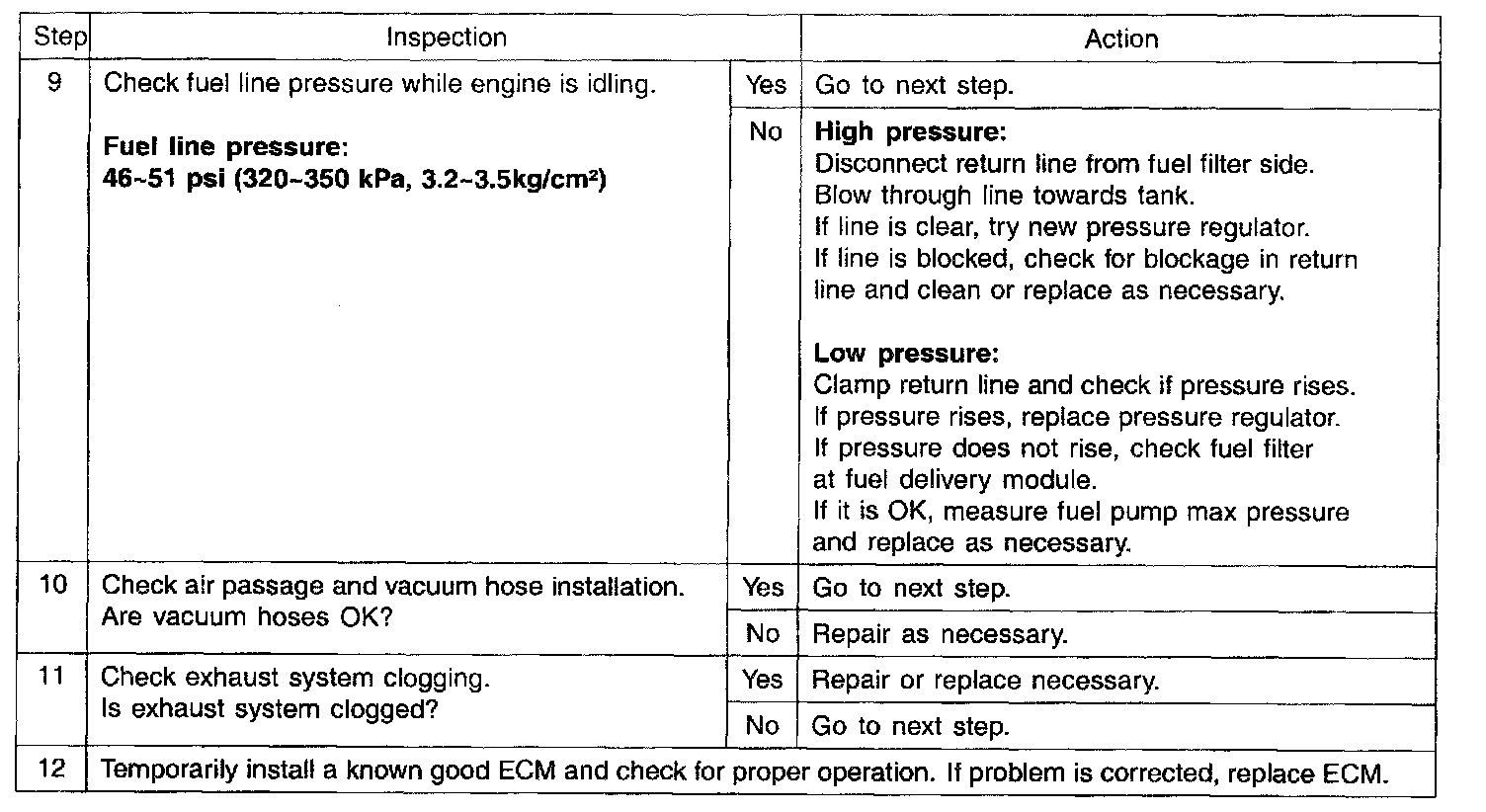

Step 9 - 12:
