Drive Belt: Testing and Inspection
DRIVE BELTINSPECTION
1. Check drive belt and pulley for wear, cracks, and fraying. Replace if necessary.
Tesion:

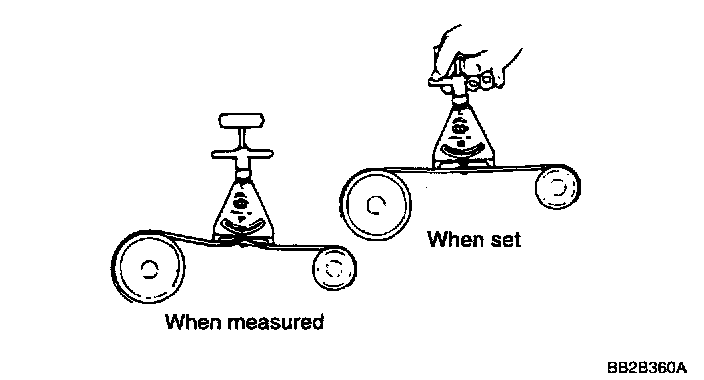

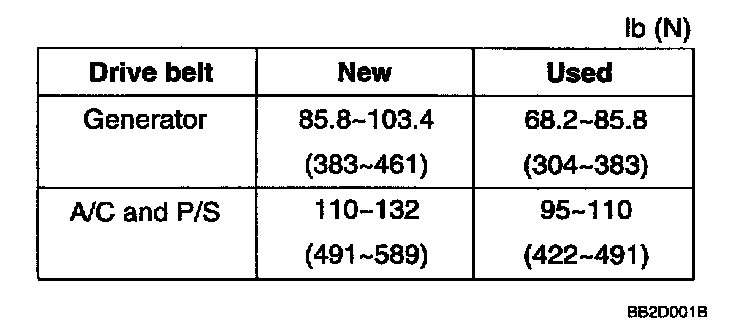

2. Measure drive belt tension with a tension gauge.
Deflection:
3. Measure deflection by applying moderate pressure (22 lb [98 N]) midway between pulleys. Adjust if necessary.
