License Plate Lamp
>>
Service and Repair
>>
Removal and Replacement
Removal and Replacement

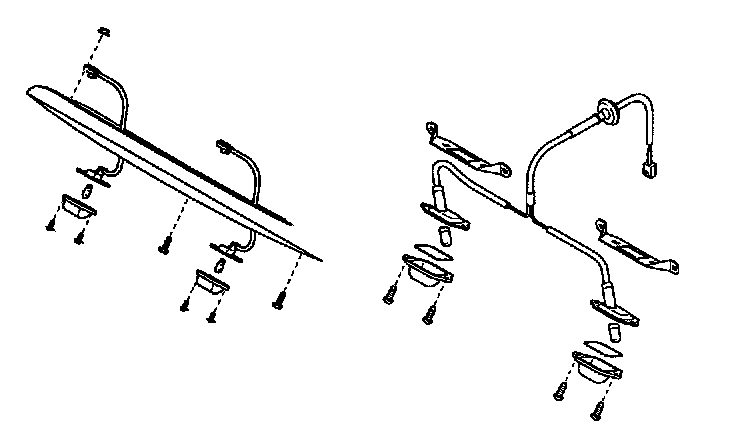

License plate light
assembly bulbs
Replacement
1.
Disconnect negative battery cable.
2.
Remove two screws attaching
license plate light
assembly.
3.
Remove bulb.
4.
Install replacement bulb.
5.
Install lens with two screws.
