Home >> Kia >> 2005 >> Rio L4-1.6L (BC) >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Locations >> Connector Locations

Connector Locations

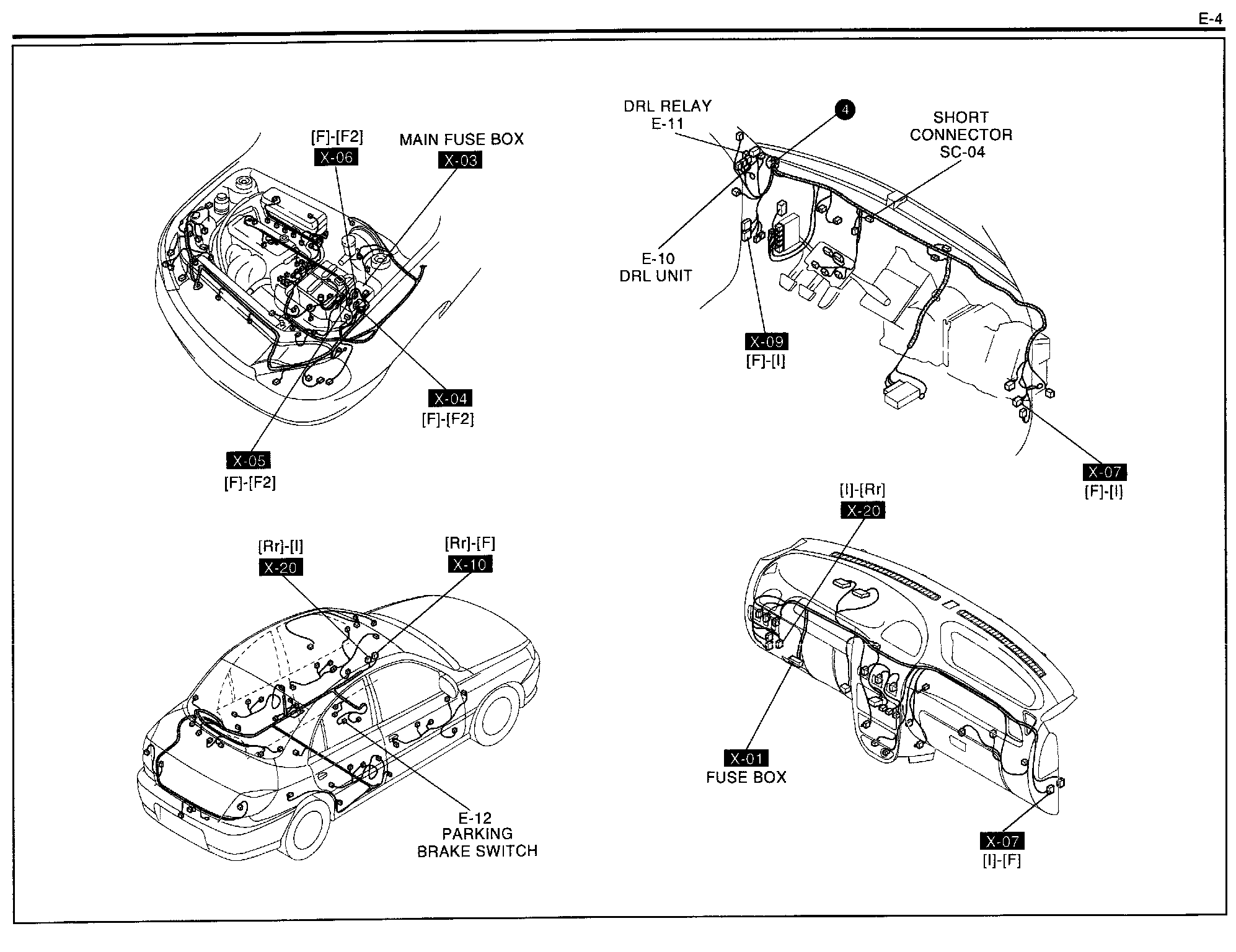

E-4 - Daytime Running Light (DRL - Canada) Harness/Connector Symbols:
