Home >> Kia >> 2005 >> Rio L4-1.6L (BC) >> Repair and Diagnosis >> Lighting and Horns >> Backup Lamp >> Locations >> Connector Locations

Connector Locations

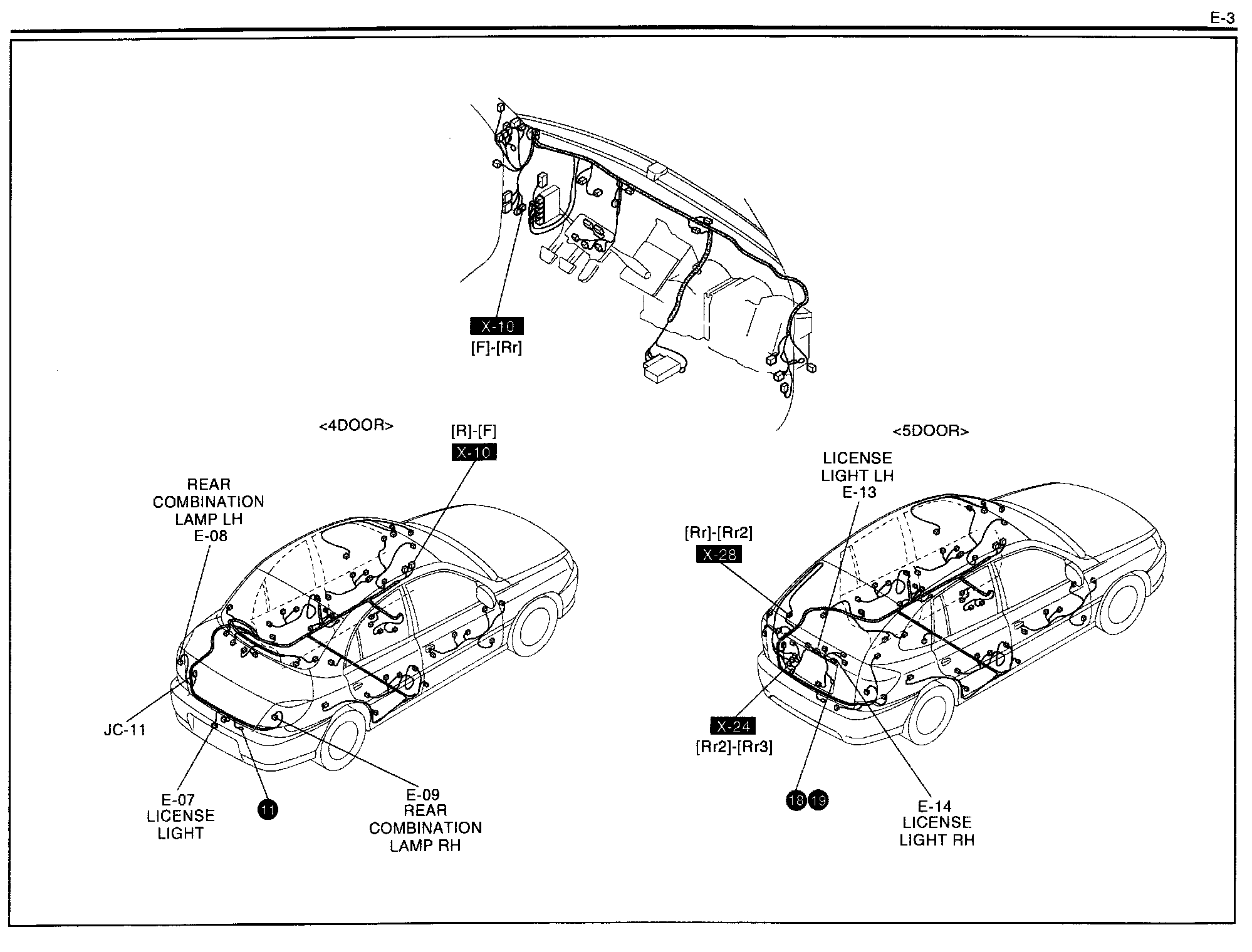

E-3 - Back-Up Lights, License Light, Tail Lights Harness/Connector Symbols:
