Instrument Cluster / Carrier: Locations

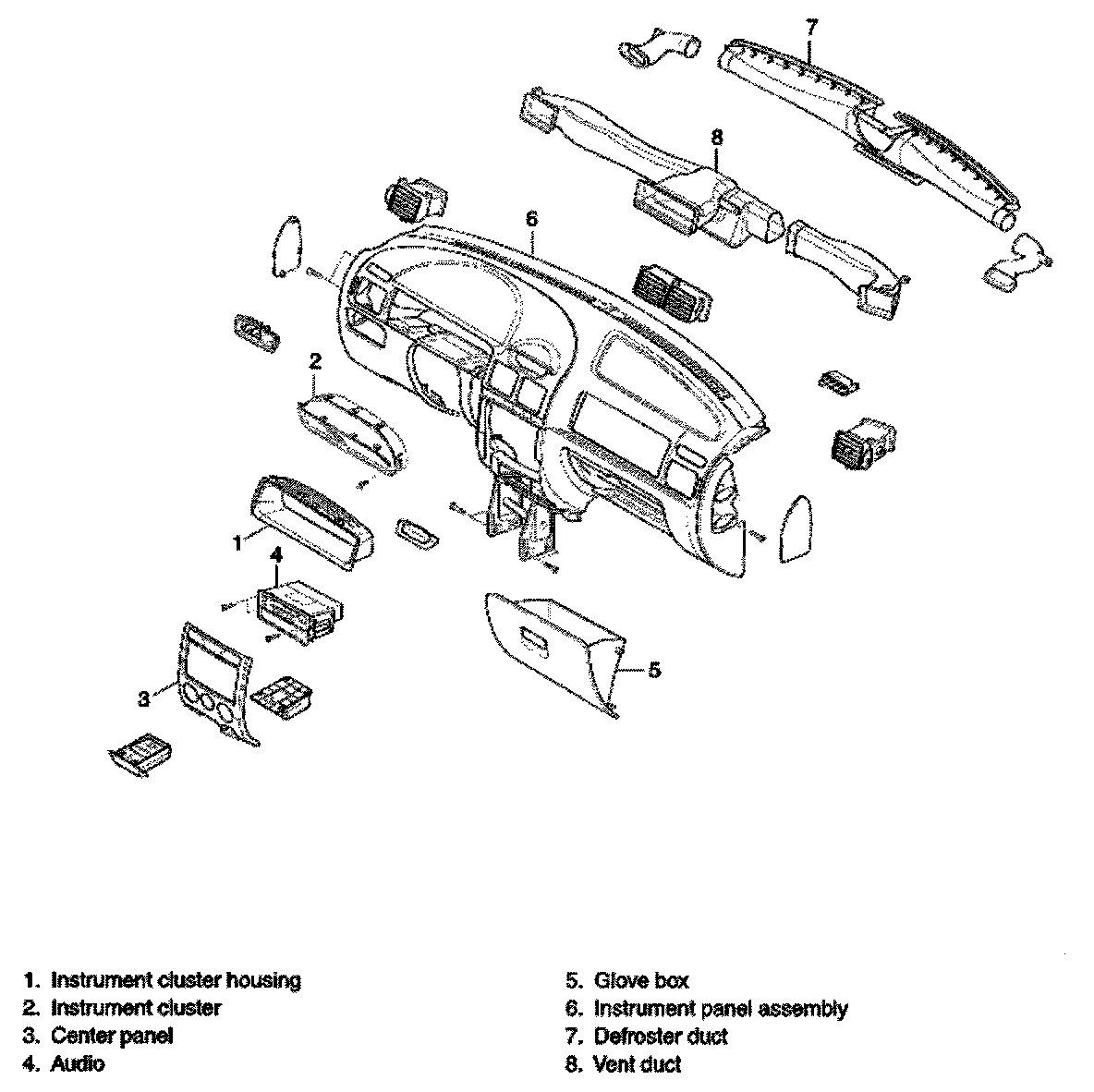

Dashboard/Console (Crash Panel) Components - Exploded View:

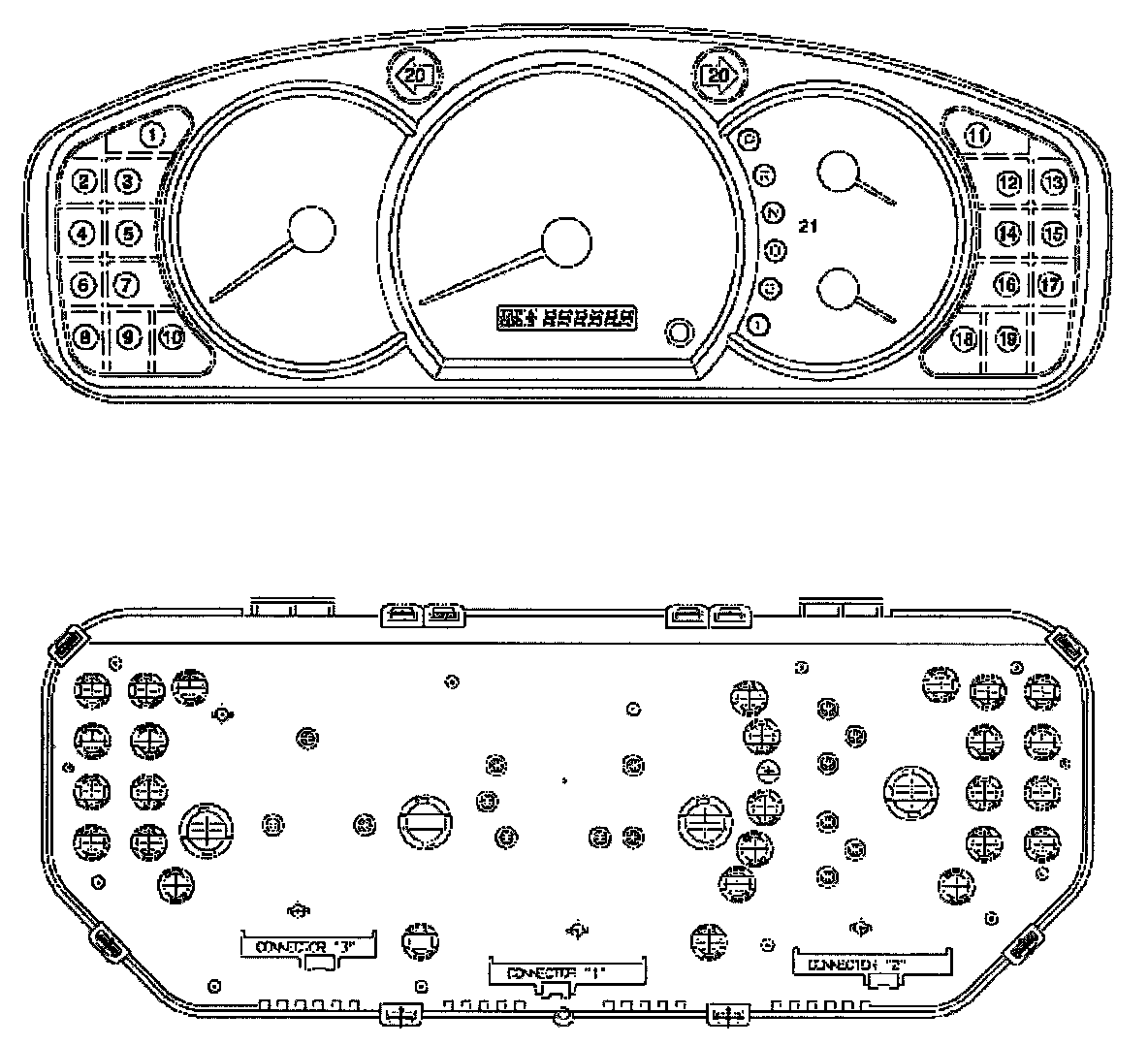

Instrument Cluster Specification & Location - Part 1 Of 2:

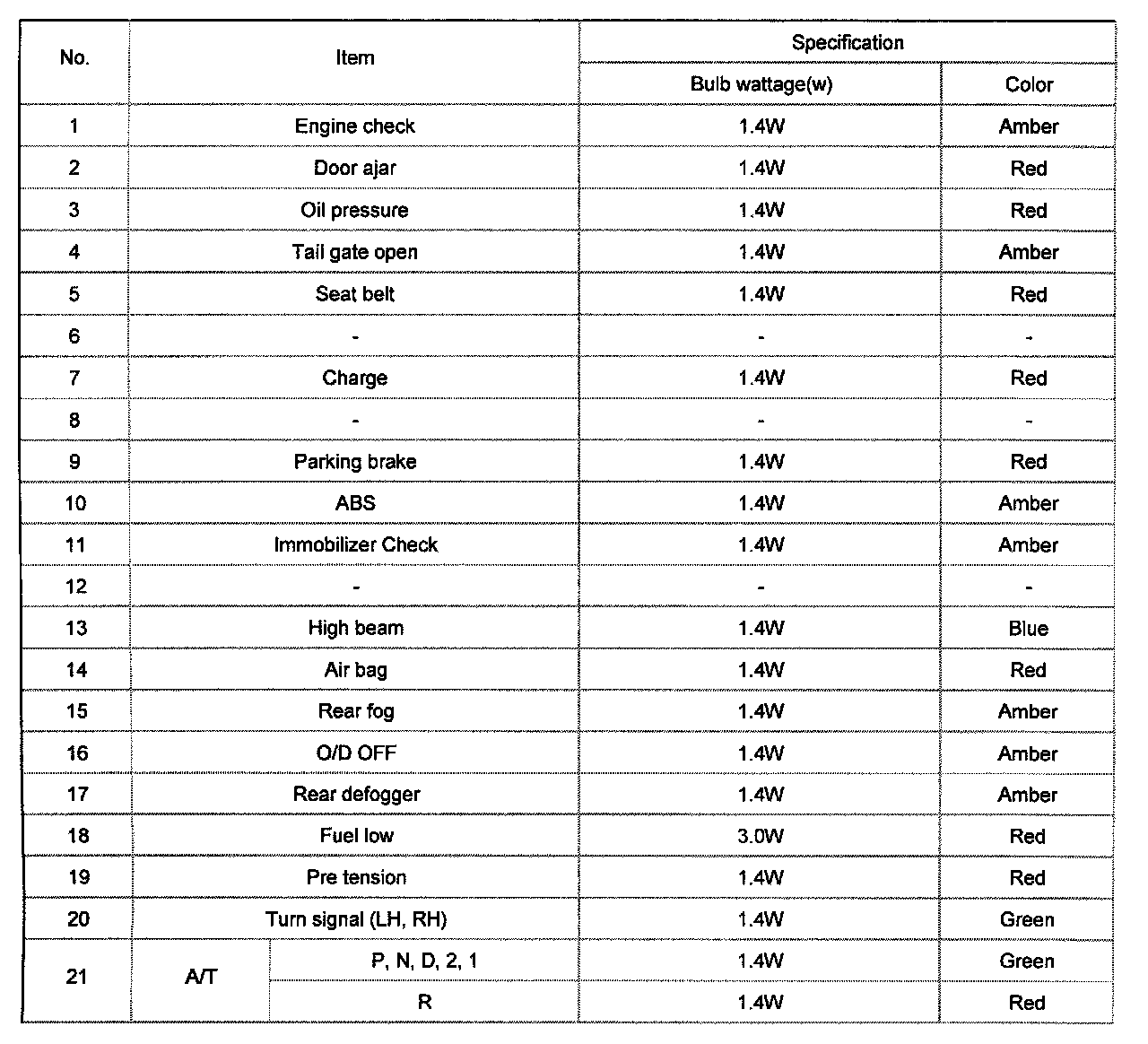

Instrument Cluster Specification & Location - Part 2 Of 2:
