Condenser Fan: Testing and Inspection

CHECKING

CONDENSER FAN

1. Check the condenser fan for proper operation.
2. Check the harness connector.

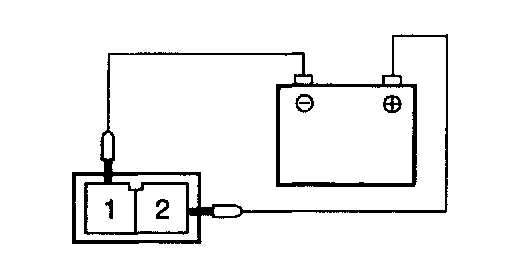

3. Check the condenser fan motor using battery voltage as shown.
