Blower Motor Controller

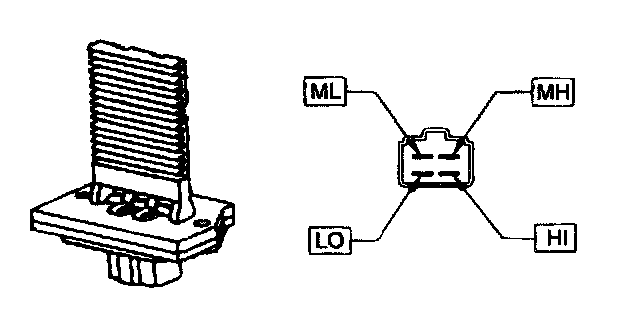

BLOWER SPEED CONTROLLER

CHECK (MANUAL CONTROL)

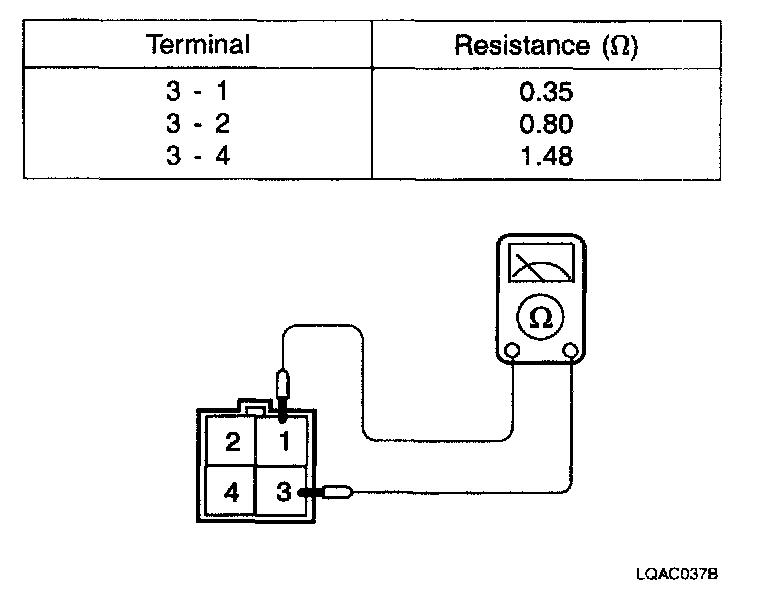

Check for continuity and resistance between terminals.
