Home >> Kia >> 2005 >> Rio L4-1.6L (BC) >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Heating and Air Conditioning >> Control Assembly, HVAC

Control Assembly, HVAC

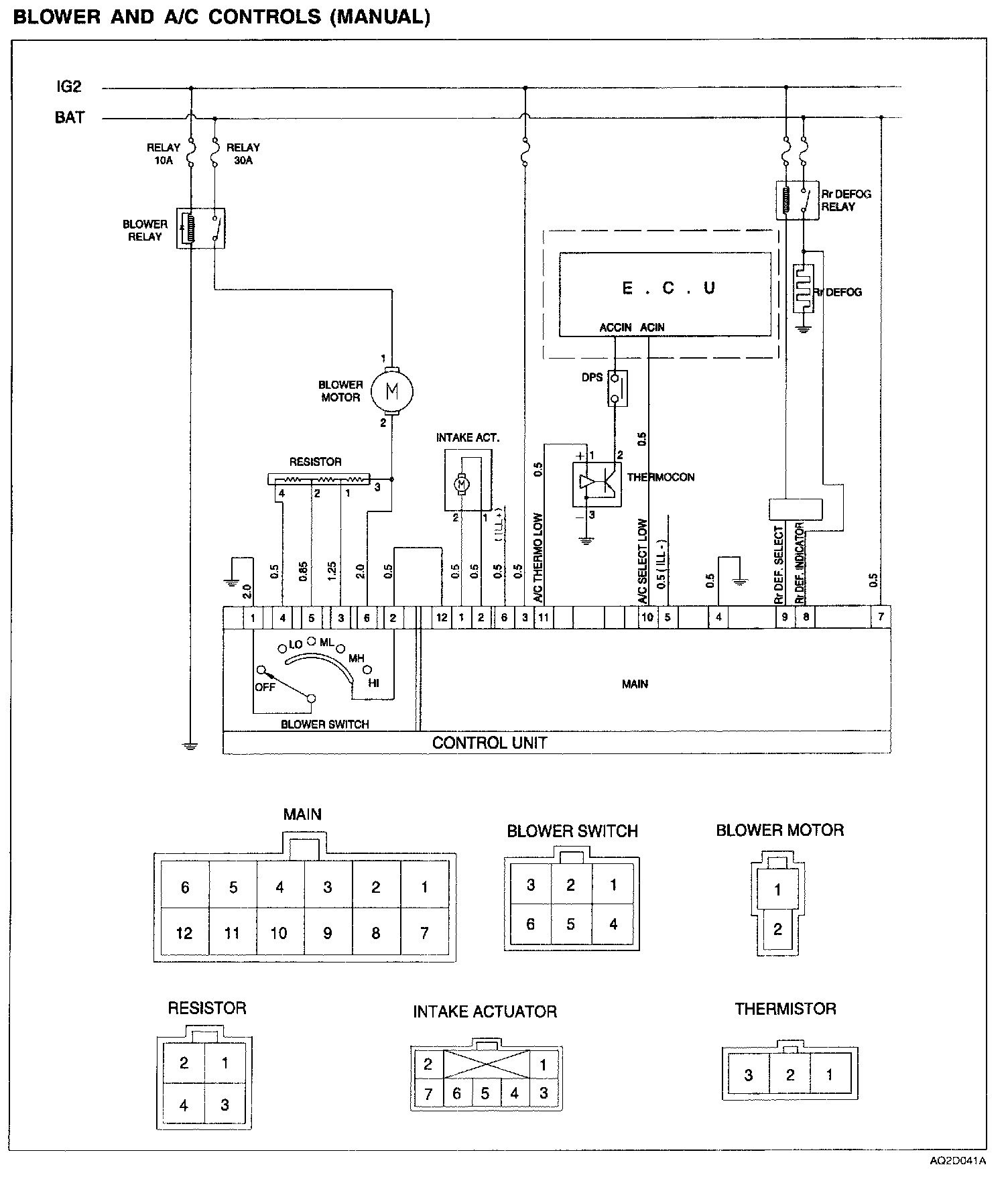

Blower And A/C Controls (Manual) - Schematic Diagram:
