Foot Rest: Service and Repair

Removal

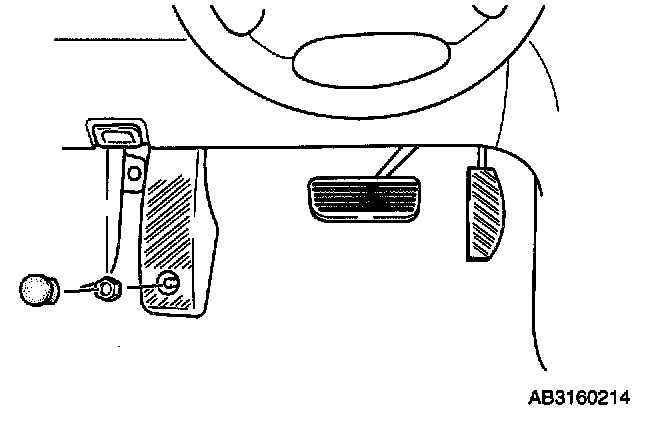

1. Remove upper nut and rubber cap of footrest trim.
2. Remove lower rubber cap.
3. Remove one lower nut.




4. Remove footrest trim.

Installation
1. Position footrest trim.
2. Install one lower nut.
3. Install lower rubber cap.
4. Install one upper nut and rubber cap.
