Rear Bumper: Service and Repair

Removal

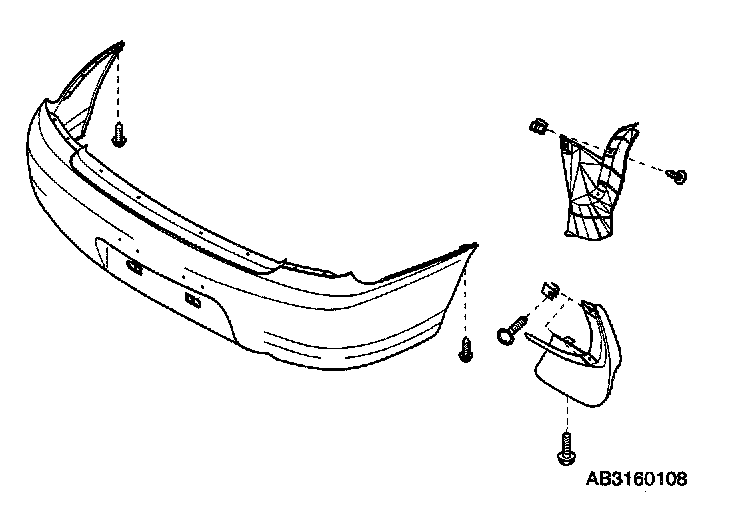

1. Remove three screws that secure left rear mud flap to mud guard.
2. Remove right mud flap.
3. Remove three screws that secure right rear mud flap to mud guard.
4. Remove one screw from right side of bumper.




5. Repeat for left side.

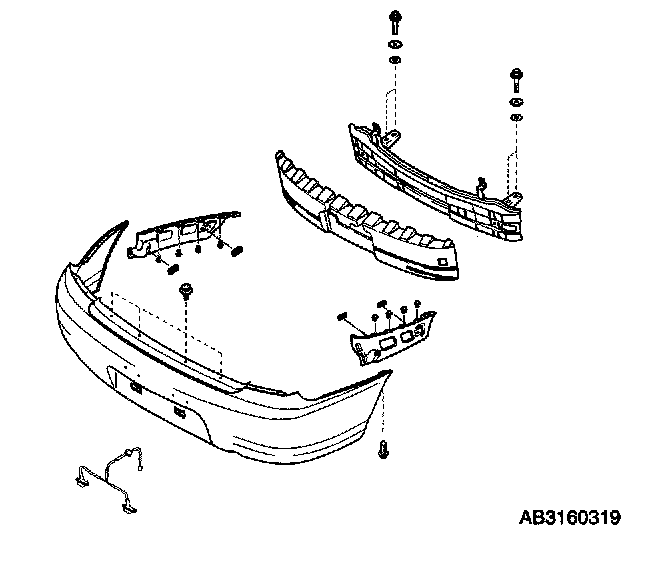

6. Remove two nuts from left side in trunk.
7. Repeat for right side.
8. Remove eight fasteners from top of bumper.
9. Remove two bolts from left rear bumper stay.
10. Repeat for right side.




11. Remove rear bumper.

Installation
Install in reverse order of removal.

Tighten bumper mounting bolts to 23 - 34 lb-ft (32 - 47 N.m, 3.2 - 4.7 kg-m)
