Air Bag System

AIRBAG DIAGNOSTIC TROUBLE CODE (DTC) CHART

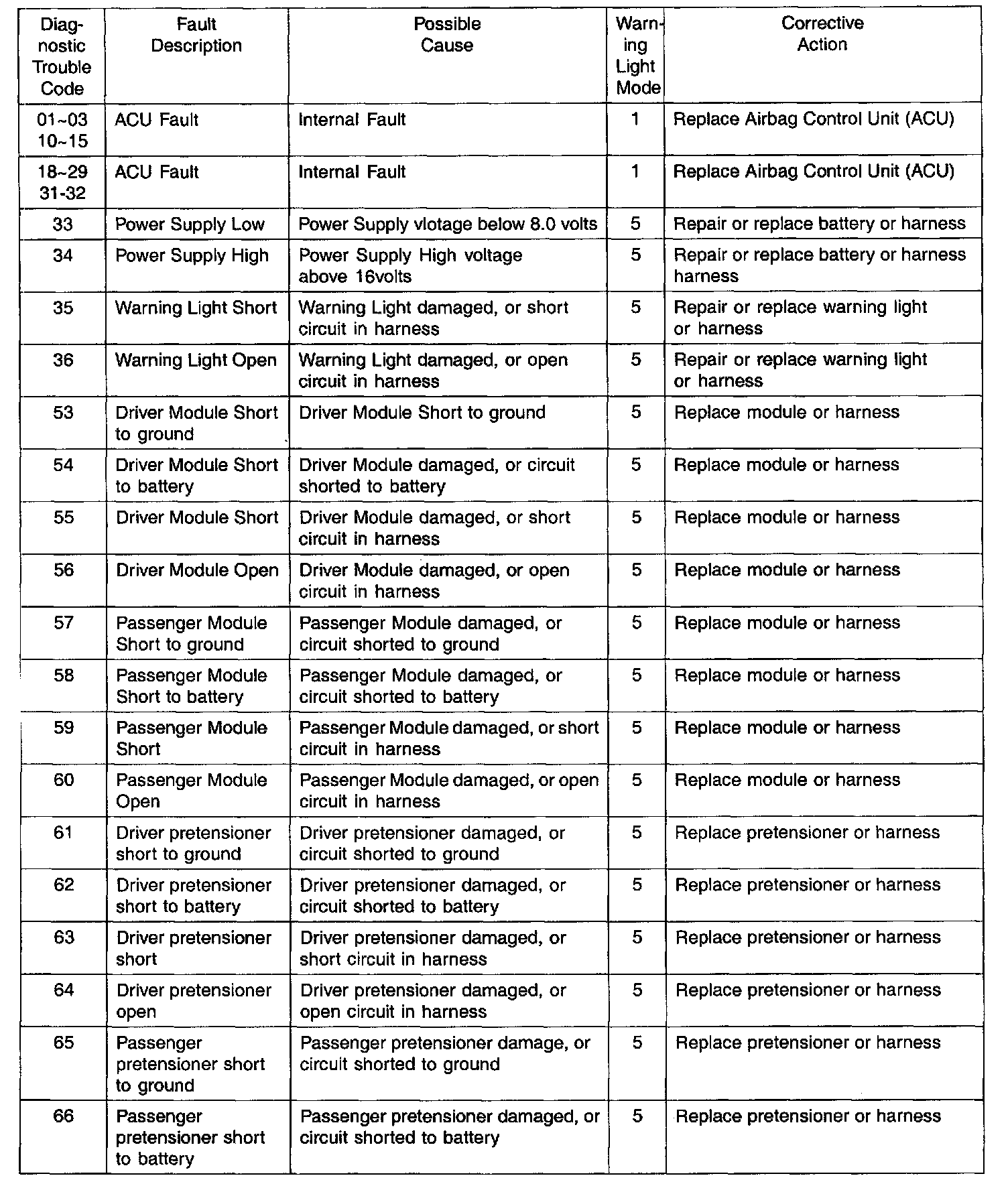

Airbag Diagnostic Trouble Code (DTC) Chart:

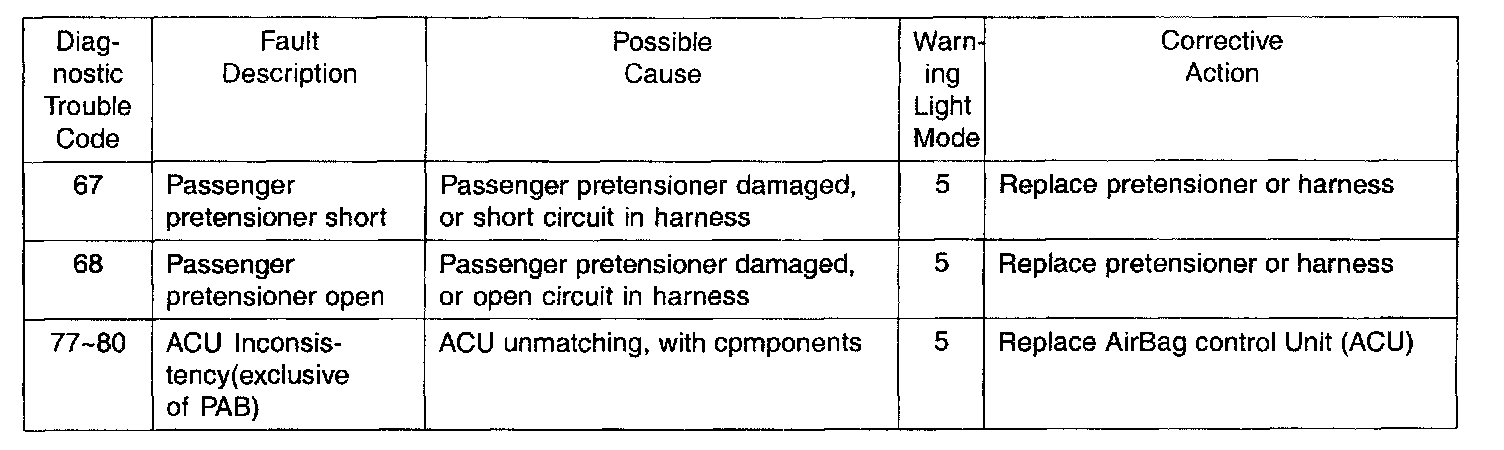

Airbag Diagnostic Trouble Code (DTC) Chart:

Warning light operating modes:

Mode 1:
Warning Light will be illuminated for reminder of ignition ON cycle, but it will not be illuminated after next ignition ON cycle if fault has self-corrected.

Mode 5:
Warning Light will be illuminated for reminder of ignition ON cycle, but it will go out approximately 10 seconds later if fault has corrected at the same ignition ON cycle.
