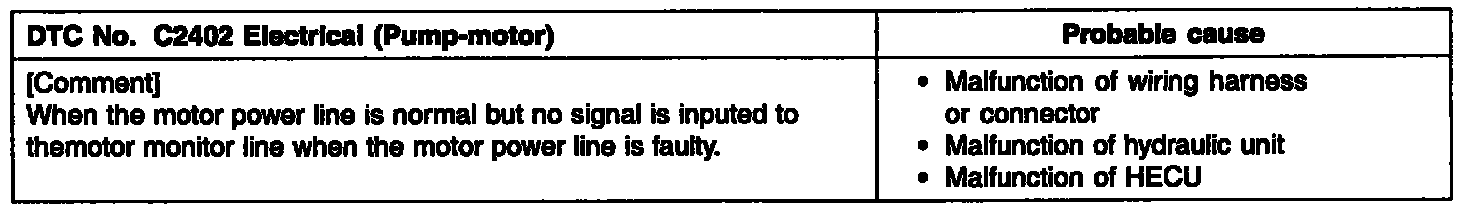

C2402
C2402

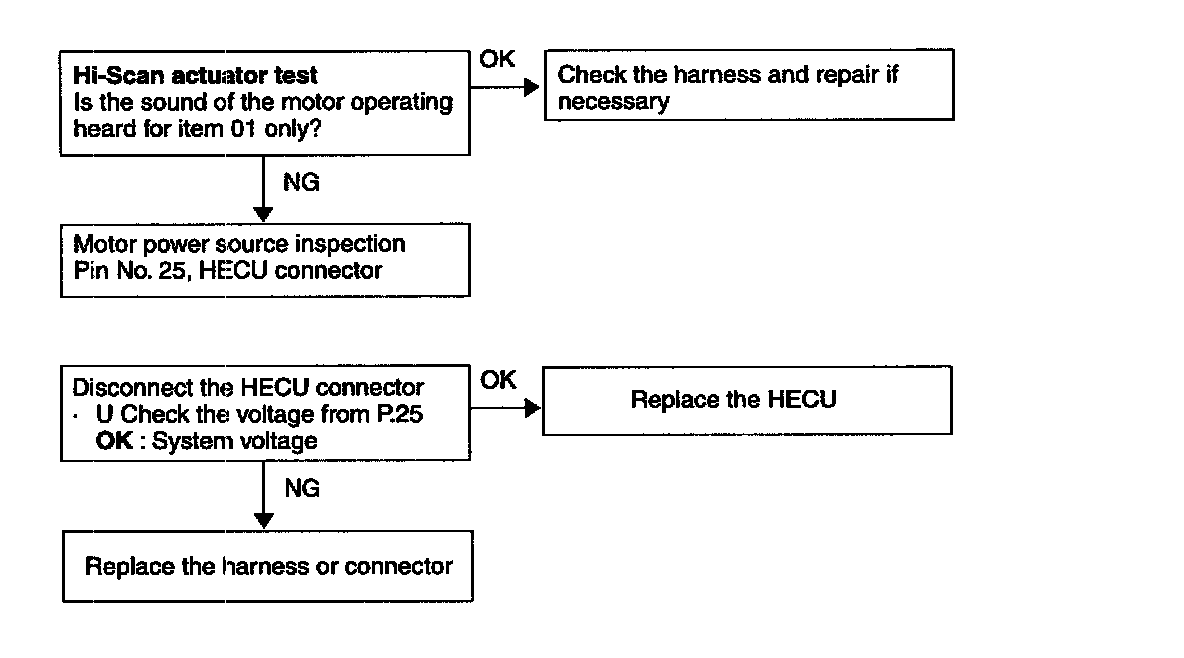

PUMP-MOTOR
Caution: Because force-driving of the motor by means of the actuator test will drain the battery, the engine should be started and left to run for a while after testing is completed.
