A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
C Code Charts
>>

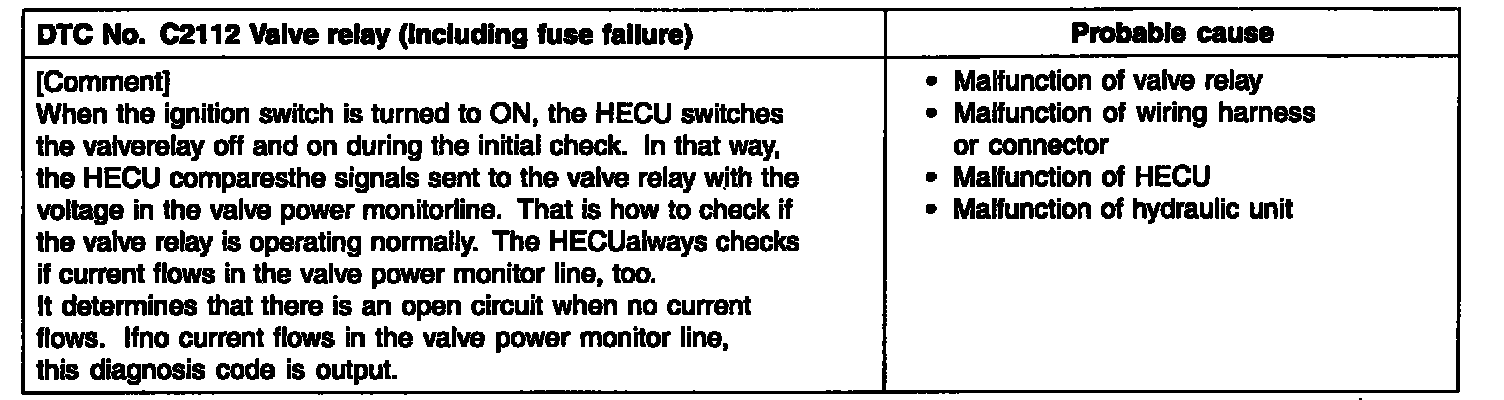

C2112
C2112
VALVE RELAY
Note:
Whenever reading the diagnosis codes using the ABS warning lamp, this diagnosis code will be output.
