P1764

P1764 - TCU CAN MI-COM Malfunction


General Description
The TCM can either receive data from the Engine Control Module or ABS control module, or it can send data to the ECM and ABSCM by using CAN communication. The CAN communicaton is one of the vehicle communications method, which is now widely used to transfer the vehicle data.

DTC Description
When the TCM judges that the CAN micro-computer, which is installed inside the TCM, is malfunctioning, the TCM sets this code.

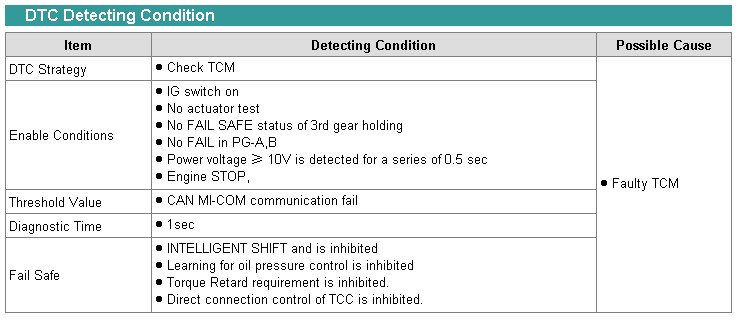

Detecting Condition





Wiring Schematic
