Enhanced Testing

P1631 - No ID From ECU






General Description
The TCM can either receive data from the Engine Control Module or ABS control module, or it can send data to the ECM and ABSCM by using CAN communication. The CAN communicaton is one of the vehicle communications method, which is now widely used to transfer the vehicle data.

DTC Description
When the TCM cannot read the data from the ECM through the CAN-BUS line, the TCM sets this code. CAN-BUS circuit malfunctioning or ECM can be a posssible cause of this DTC.

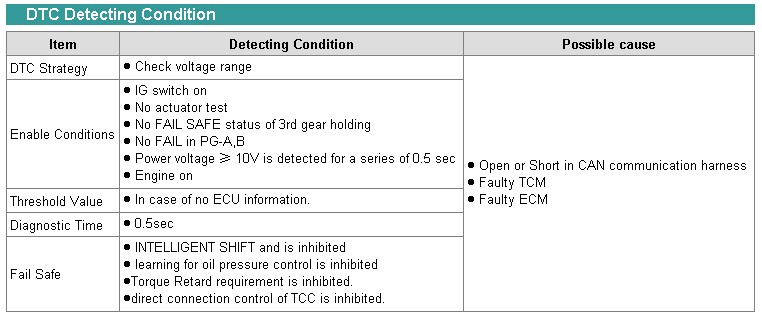

Detecting Condition

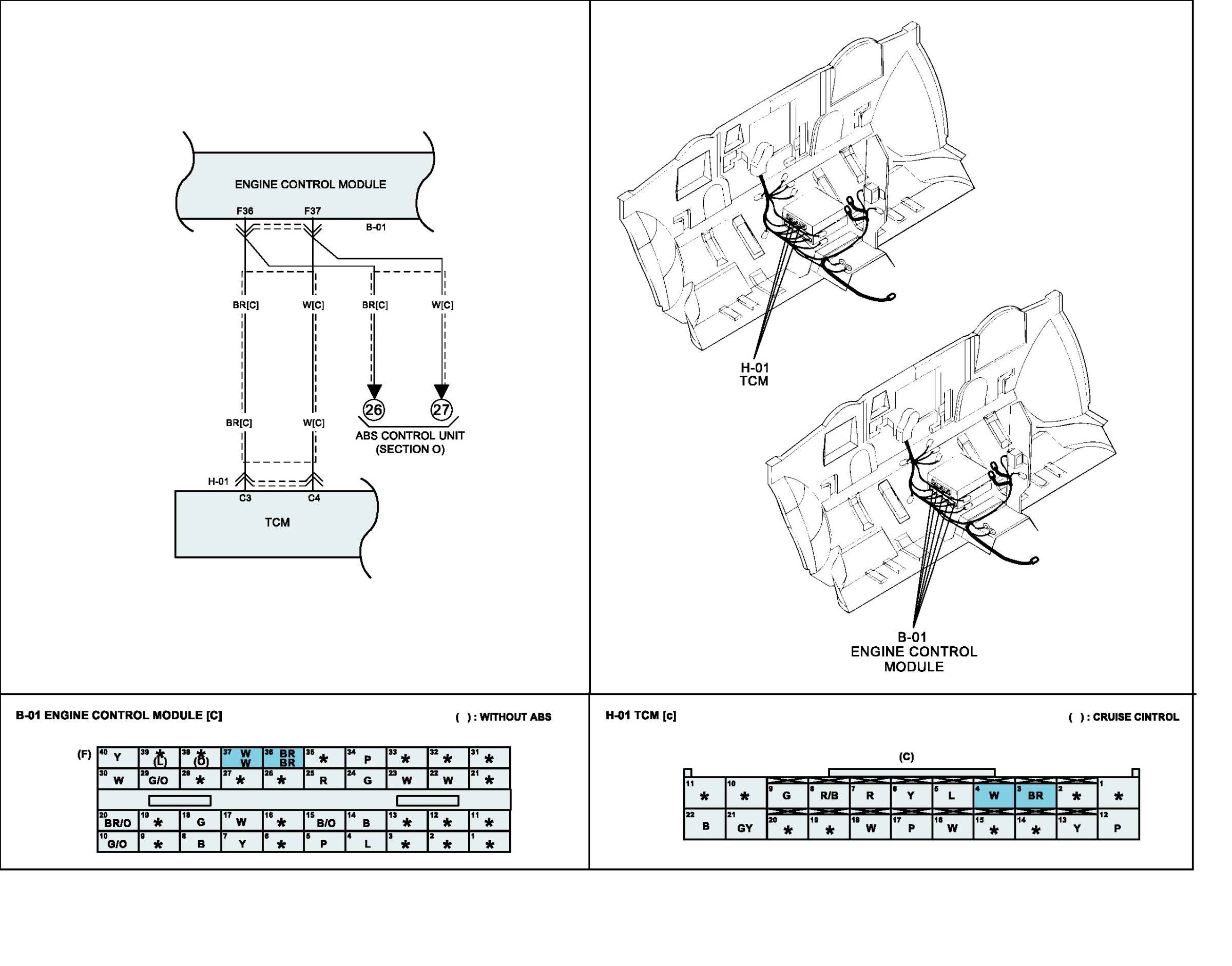

Wiring Schematic





Signal Waveform
