Enhanced Testing

P0760 - Shift Control Solenoid Valve C Circuit Malfunction






General Description
The PCM/TCM checks the Second Brake Control Signal by monitoring the feedback signal from the solenoid valve drive circuit .If an unexpected signal is monitored, (for example, high voltage is detected when low voltage is expected or low voltage is detected when high voltage is expected) the TCM judges that 2nd Brake drive contorl solenoid circuit is malfunctioning and sets this code.

DTC Description
he PCM/TCM checks the Second Brake Control Signal by monitoring the feedback signal from the solenoid valve drive circuit .If an unexpected signal is monitored, (for example, high voltage is detected when low voltage is expected or low voltage is detected when high voltage is expected) the TCM judges that 2nd Brake drive contorl solenoid circuit is malfunctioning and sets this code.

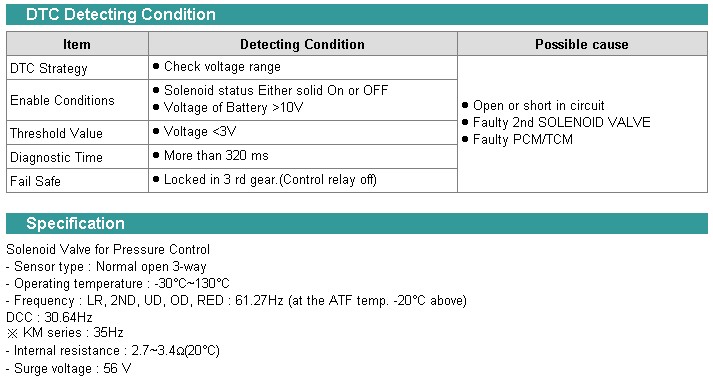

Detecting Condition and Specifications

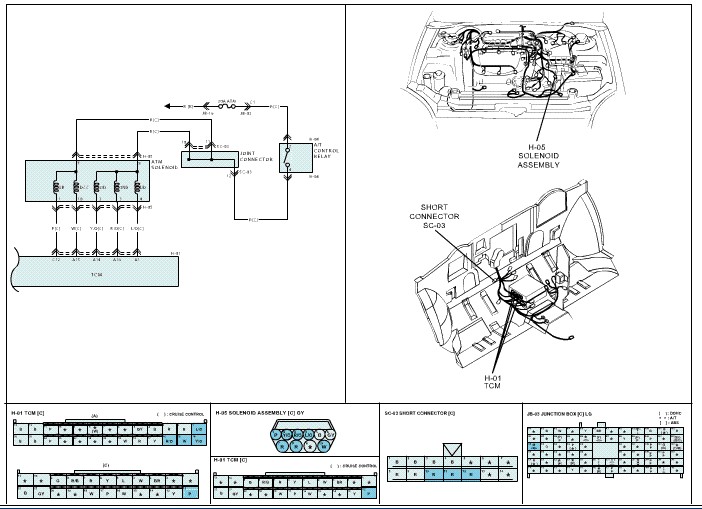

Wiring Schematic
