P0464

P0464 - Fuel Level Sensor A Circuit Intermittent






Function
The fuel level sensor measures the fuel level in fuel tank and its signal is used to determine if the fuel level is too high or too low to be able to accurately detect EVAP system failures.

DTC Description
The ECM sets DTC P0464 if ECM detects that signal fluctuation is lower than threshold value.

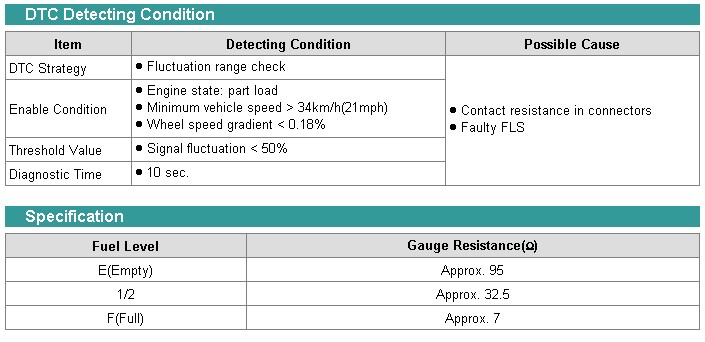

Detecting Condition and Specifications

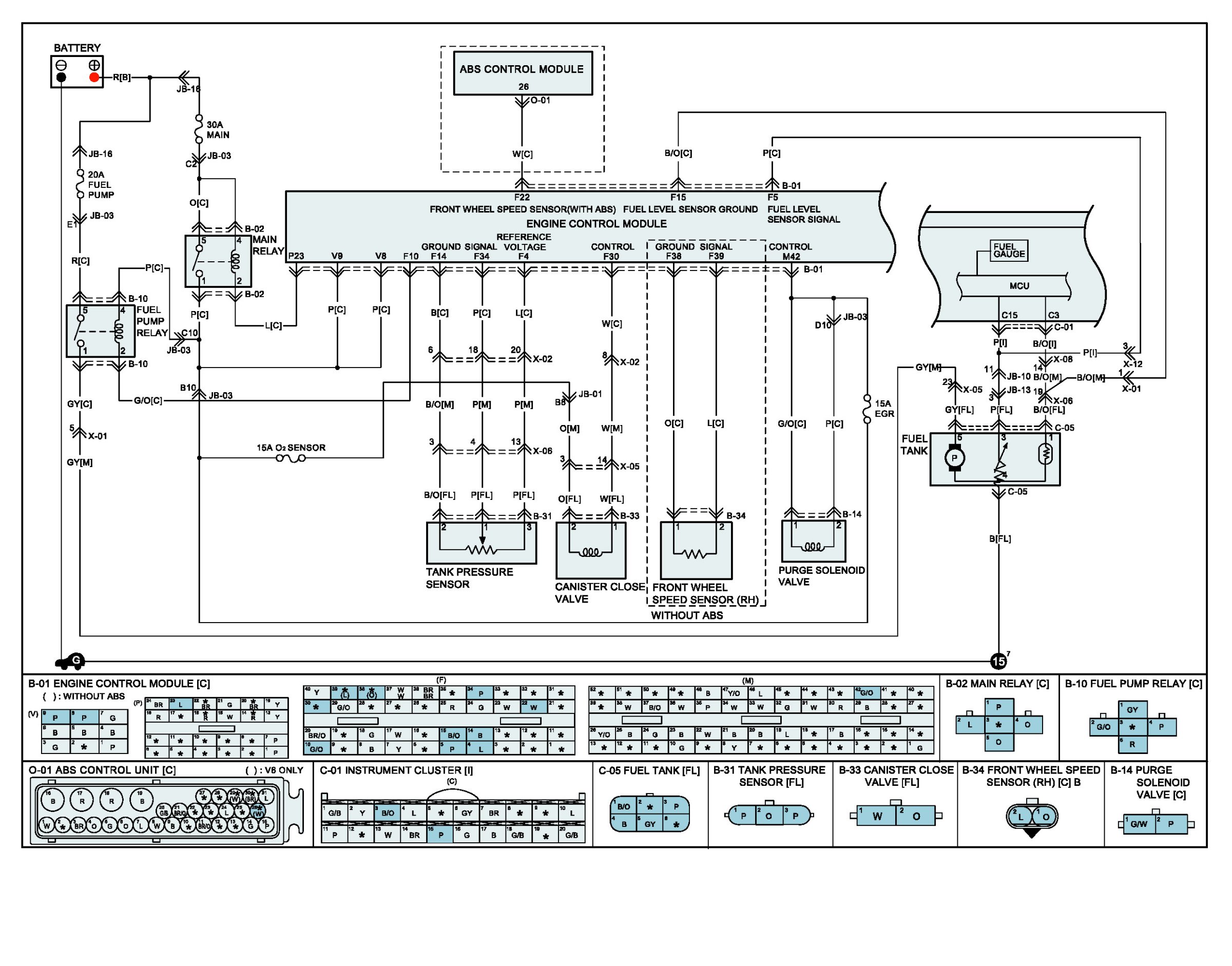

Wiring Schematic
