Enhanced Testing

P0462 - Fuel Level Sensor A Circuit Low Input






Function
The fuel level sensor measures the fuel level in fuel tank and its signal is used to determine if the fuel level is too high or too low to be able to accurately detect EVAP system failures.

DTC Description
The ECM sets DTC P0462 if ECM detects that fuel level signal is less than the threshold value.

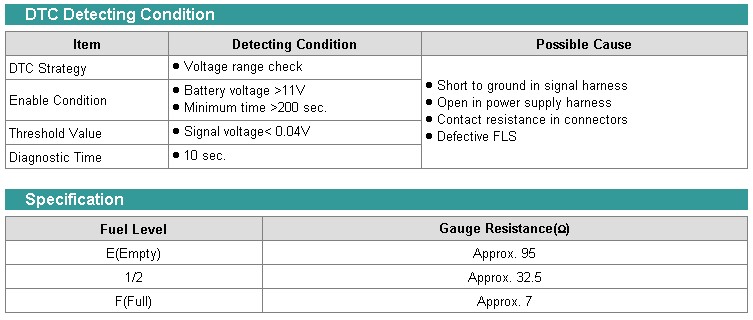

Detecting Condition and Specifications





Wiring Schematic
