Enhanced Testing

P0461 - Fuel Level Sensor A Circuit Range/Performance







Function
The fuel level sensor measures the fuel level in fuel tank and its signal is used to determine if the fuel level is too high or too low to be able to accurately detect EVAP system failures.

DTC Description
The ECM sets DTC P0461 if ECM detects that fuel level change from maximum to minimum is less than the threshold value.

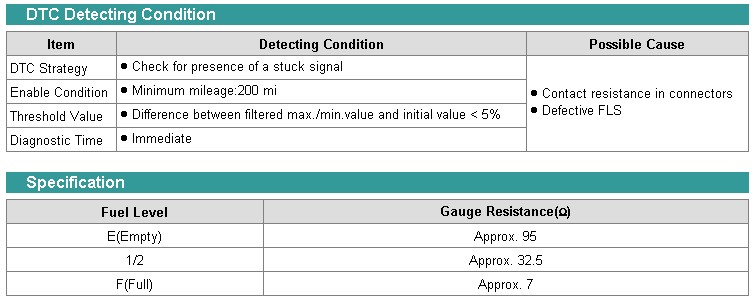

Detecting Condition and Specifications





Wiring Schematic
