Enhanced Testing

P0445 - Evaporative Emission System: Purge Control Circuit Shorted







Function
The evaporative emission control system prevents hydrocarbon (HC) vapors from the fuel tank from escaping into the atmosphere where they could form photochemical smog. Gasoline vapors are collected in the charcoal canister. The ECM controls the Purge Control Solenoid Valve (PCSV) to purge any collected vapors from the canister back to the engine for combustion. This valve is actuated by the purge control signal from the ECM and controls fuel vapor flow from the canister to the intake manifold.

DTC Description
ECM sets DTC P0445 if the ECM detects that the PCSV control line is shorted to ground or shorted to battery voltage.

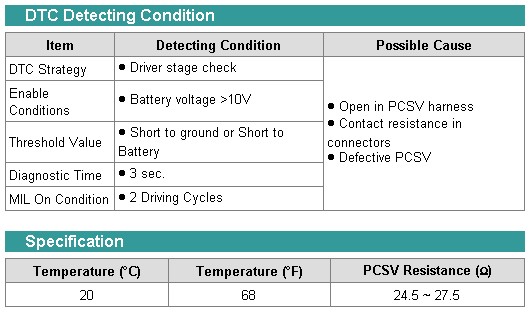

Detecting Condition and Specifications





Wiring Schematic
