Home >> Kia >> 2005 >> Optima V6-2.7L >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> P Code Charts >> P0325 >> Enhanced Testing

Enhanced Testing



P0325 - Knock Sensor 1 Cicruit







Description

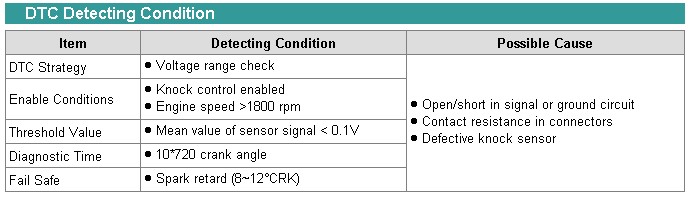

Detecting Conditions

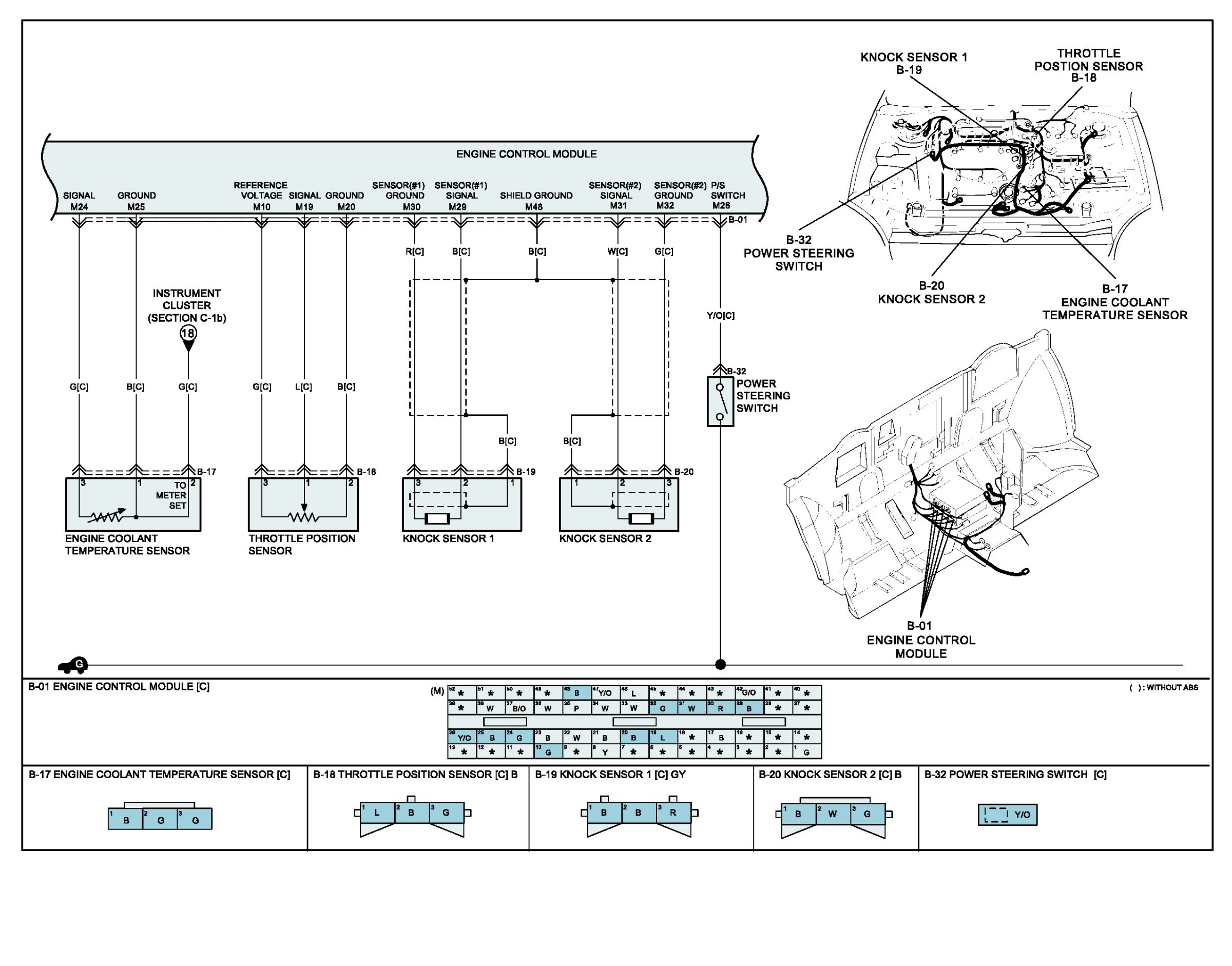

Wiring Schematic
