Enhanced Testing

P0175 - System Too Rich (Bank 2)






Function
In order to provide the best possible combination of drivability, fuel economy and emission control, the ECM uses a closed loop air/fuel metering system. The ECM monitors the HO2S signal voltage and adjusts fuel delivery based it in closed loop fuel control. Changes in fuel delivery will be indicated by the long-term and the short-term fuel trim values. The ideal fuel trim value is around 0%. The ECM will add fuel when the HO2S signal is indicating a lean condition. Additional fuel is indicated by fuel trim values that are above 0%. The ECM will reduce fuel when the HO2S signal is indicating a rich condition. Reduction in fuel is indicated by fuel trim values that are below 0%. The DTC relevant to fuel trim will be set when the amount reaches excessive levels because of a lean or rich condition.


DTC Description
Breaking lambda adaptation and lambda controller limits for a an extended period, which initially may have been caused by failures in the fuel or intake system, will involve emission rise, and therefore shall be diagnosed by fuel system monitoring.

The lambda controller deviations, including adaptive terms, are used for fuel system monitoring. The time counter is increased if lambda controller deviations exceed a specific threshold and the ECM will then set DTC P0174 or P0175 respectively depending on the direction of the deviation. P0174 is set with positive deviation and P0175 is set with negative deviation.

If same error code is set in the next driving cycle, the ECM illuminates the MIL.

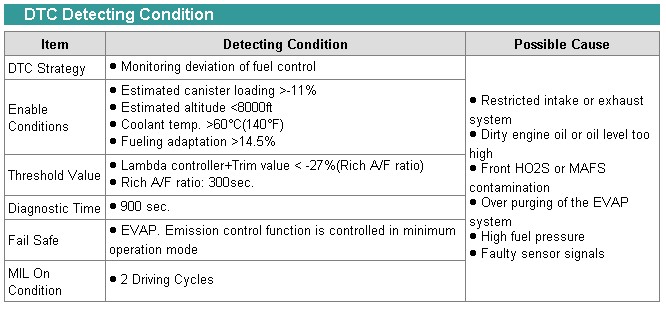

Detecting Condition

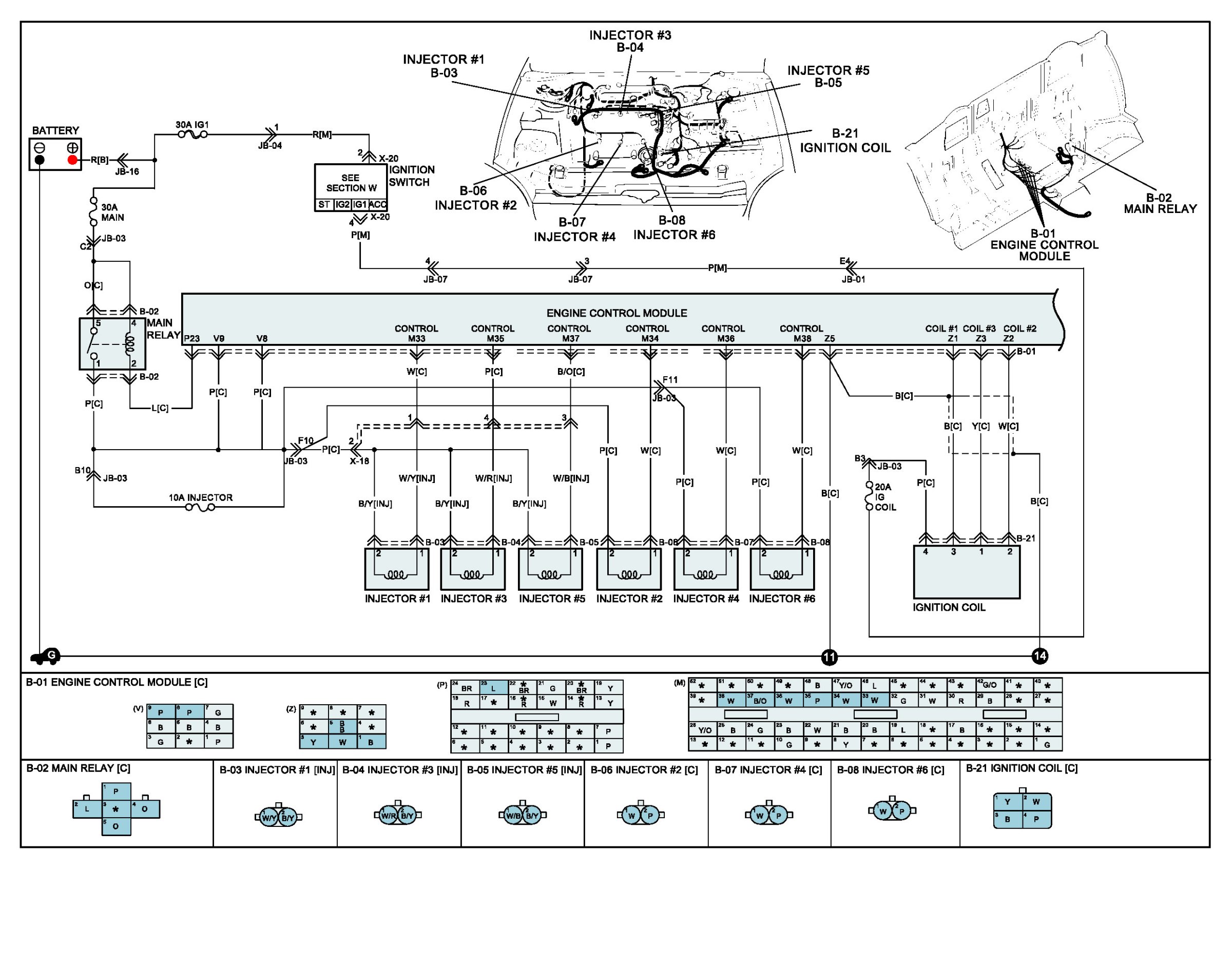

Wiring Schematic
