P0160 - HO2S Circuit No Activity Detected (B2/S2)






Function
The rear heated oxygen sensor is mounted on the rear side of the Catalytic Converter (warm-up catalytic converter) or in the rear exhaust pipe, which detects the catalyst efficiency. The rear heated oxygen sensor (HO2S) produces a voltage between 0V and 1V. This rear heated oxygen sensor is used to estimate the oxygen storage capability. If a catalyst has good conversion properties, the oxygen fluctuations are smoothed by the oxygen storage capacity of the catalyst. If the conversion provided by the catalyst is low due to aging, poisoning or misfiring, then the oxygen fluctuations are similar to signals from the front oxygen sensor.

DTC Description
Due to possible oxygen sensor defects (e.g. reference air poisoning) or faults in the injection system (e.g. leaking fuel injector), the rear oxygen sensor may not provide the expected lean or rich signal level during fuel cut-off or full load condition. Hence, the oxygen sensor signal is checked for plausibility during this engine operating states.

There are 3 cases which DTC P0160 sets.

1. Signal monitoring during fuel cut-off: The ECM monitors rear O2 sensor signal level during fuel cut-off which normally shows near 0V and sets DTC P0160 when signal level is too high.

2. Signal monitoring after fuel cut-off: The ECM monitors rear O2 sensor signal level for a certain time after leaving fuel cut-off and sets DTC P0160 when signal variation during checked period is too small.

3. Signal monitoring during full load: The ECM monitors rear O2 sensor signal during full load which applies rich air-fuel mixture and sets DTC P0160 when rear O2 sensor signal is too low.

If same error code is set in the next driving cycle, the ECM illuminates the MIL.

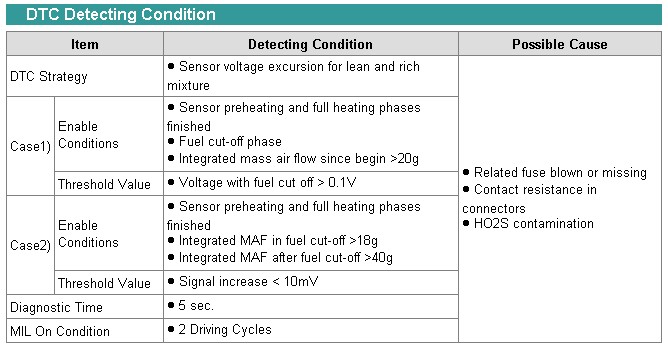

Detecting Condition and Specifications





Wiring Schematic





Signal Waveform
