Removal and Installation
REMOVAL1. Remove the wheel and tire.

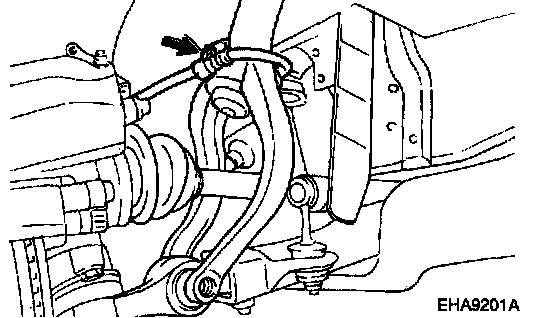

2. Detach the brake hose from the fork.

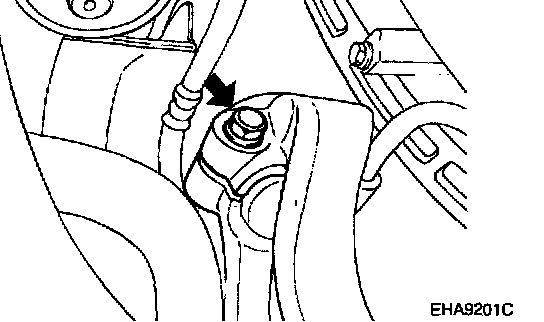

3. Remove the bolt from the shock absorber bushing.

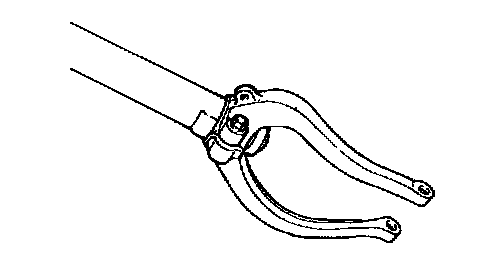

4. Remove the bolt then remove the fork from the shock absorber.

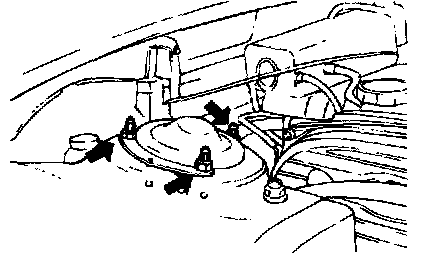

5. Remove the strut upper mounting 3 nuts and top mounting ring.
6. While pushing the axle assembly upward remove the strut assembly.
INSTALLATION

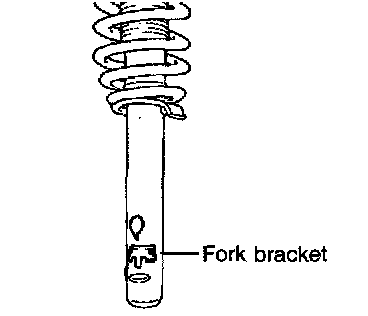

1. Place the fork bracket of the strut toward the inside of the vehicle, then install the strut assembly to the wheel house.
2. Install the fork to the strut assembly.
3. Install the brake hose.
4. Install the wheel and tire.
