Removal and Installation
CAUTION: Be sure to cover the Generator with a protector when servicing the oil pump.REMOVAL

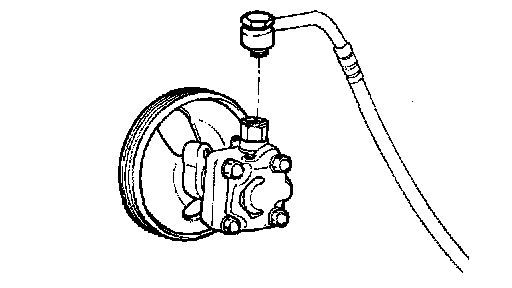

1. Remove the pressure hose from the oil pump.
NOTE: When assembling, use a new O-ring.

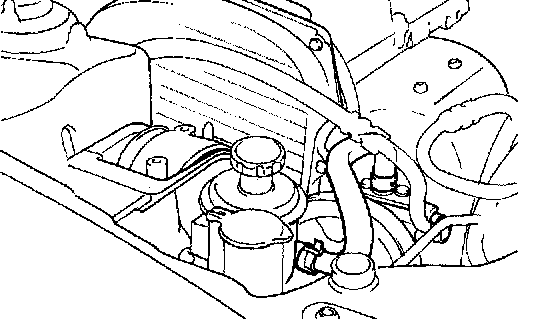

2. Disconnect the suction hose from the suction connector and drain the fluid into a container.
CAUTION: When removing the suction hose, cover the generator with vinyl not to be damaged by the oil in flowing.

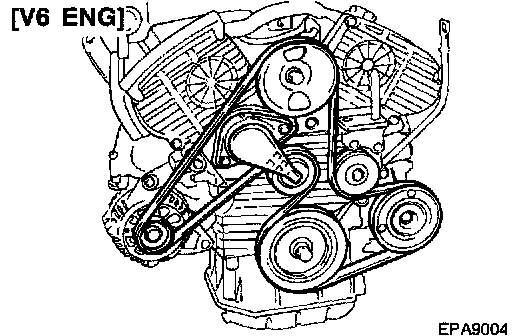

3. Remove the V-belt. (V6 ENG.)

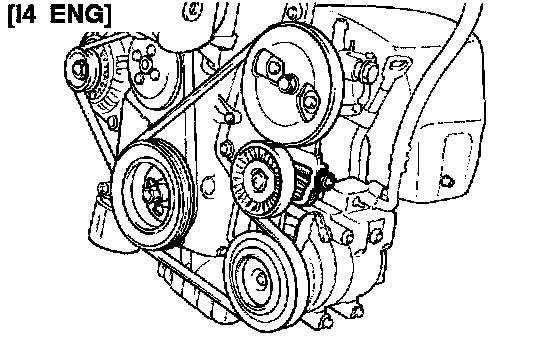

4. Loosen the tensioner adjusting bolt to remove the V-belt (l4 ENG).
5. Remove the oil pump mounting bolts and disconnect the pressure switch connector.
INSTALLATION
1. Install the oil pump to the oil pump bracket.
2. Install the suction hose.
3. Install the ribbed V-belt and adjust the belt tension.
4. Connect the pressure hose to the oil pump, and the suction hose to the oil reservoir.
NOTE; Install the hoses so that they are not twisted and they do not come in contact with any other parts.
5. Replenish the reservoir.
Recommended fluid: Power steering fluid (PSF-3)
6. Bleed the system.
7. Check the oil pump pressure.
8. Install parts by reference to the torque specification.
