Power Seat Switch: Testing and Inspection

POWER SEAT SWITCH

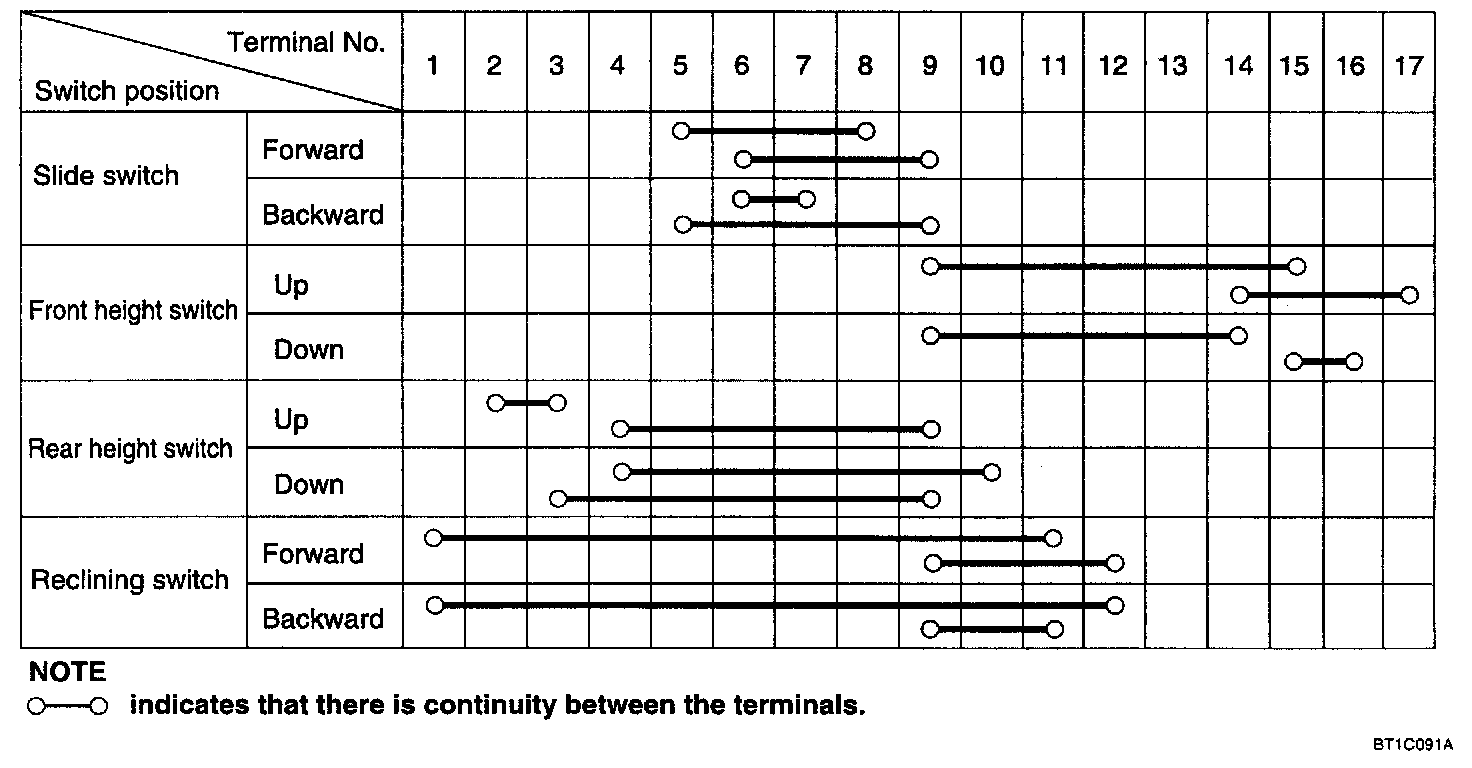

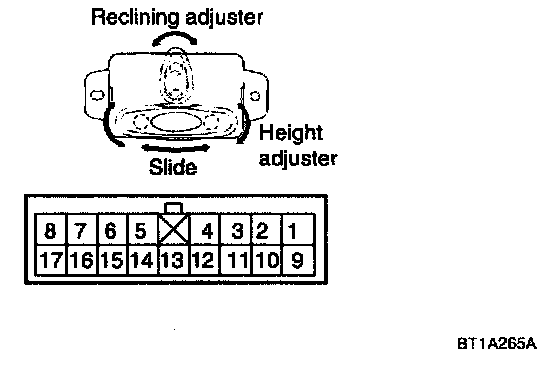

Operate the power seat switch and check for continuity between terminals. If continuity is not as specified, replace the switch.

SLIDE MOTOR LIMIT SWITCH

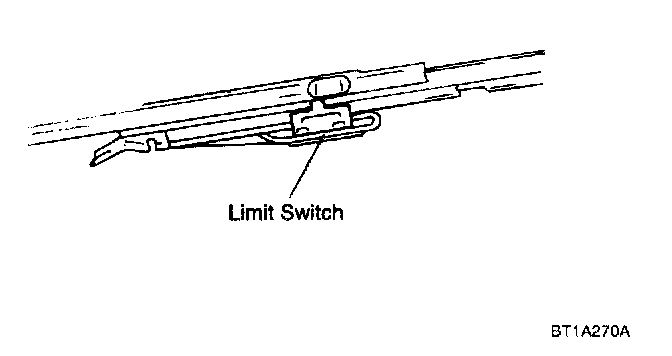

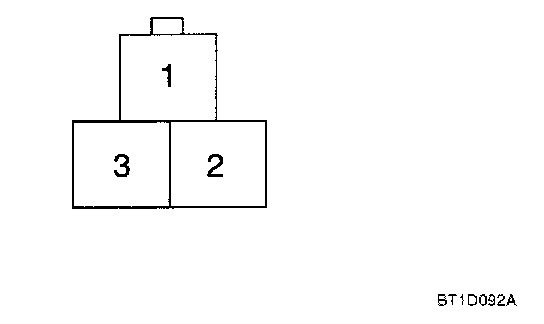

1. Disconnect the limit switch and operate the limit switch.

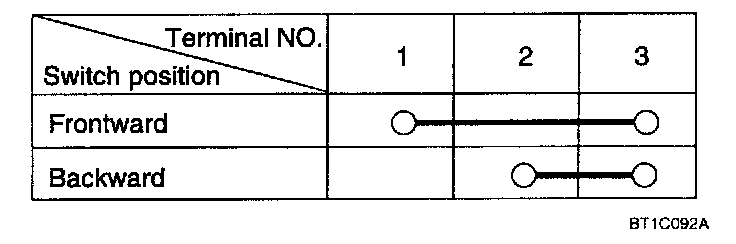

2. Check for continuity between the terminals.







3. If there is an abnormality, replace the limit switch.

HEIGHT MOTOR LIMIT SWITCH

The height motor limit switch builts in the height motor.
1. Check that the motor stop after about 1/2 turns counterclockwise.
2. Check that the motor stop after about 1/2 turns clockwise.
3. If operation is not as specified, replace the motor.
