Wheel Stud / Lug Nut: Service and Repair

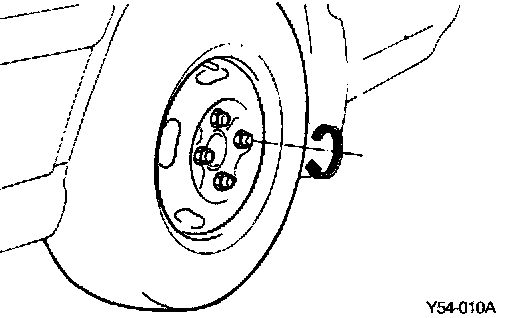

TIGHTENING WHEEL NUT





1. Tightening torque.
Specified torque 90 - 110 Nm (900 - 1100 kg cm, 66 - 81 ft. lbs.)

NOTE: When using an impact gun, ensure to use the correct tightening torque.

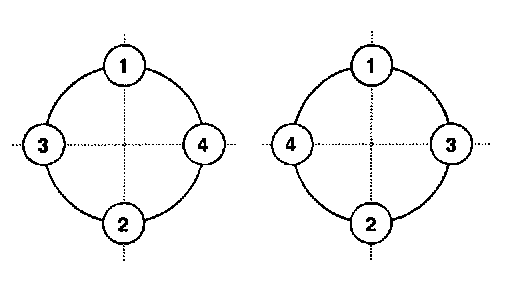

2. Tighten all wheel nuts in the such order as shown in the illustration.
