Sunroof / Moonroof Motor: Testing and Inspection

INSPECTION OF COMPONENTS

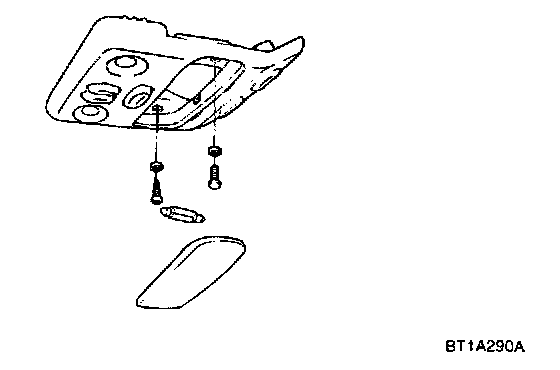

1. Remove the overhead console lamp.
2. Disconnect the motor connector from sun roof harness.




3. Apply DC 12 V to the terminal 2 and ground the terminal 6.
4. Check that the motor turns.
5. Reverse the connections and check that the motor turns in the opposite directions.
